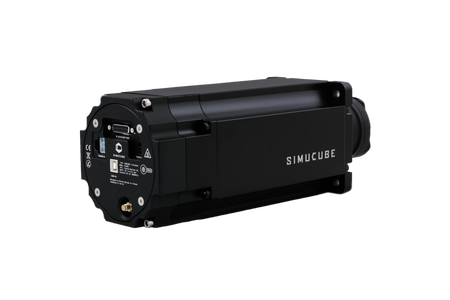

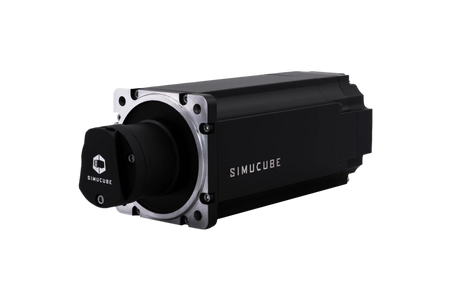

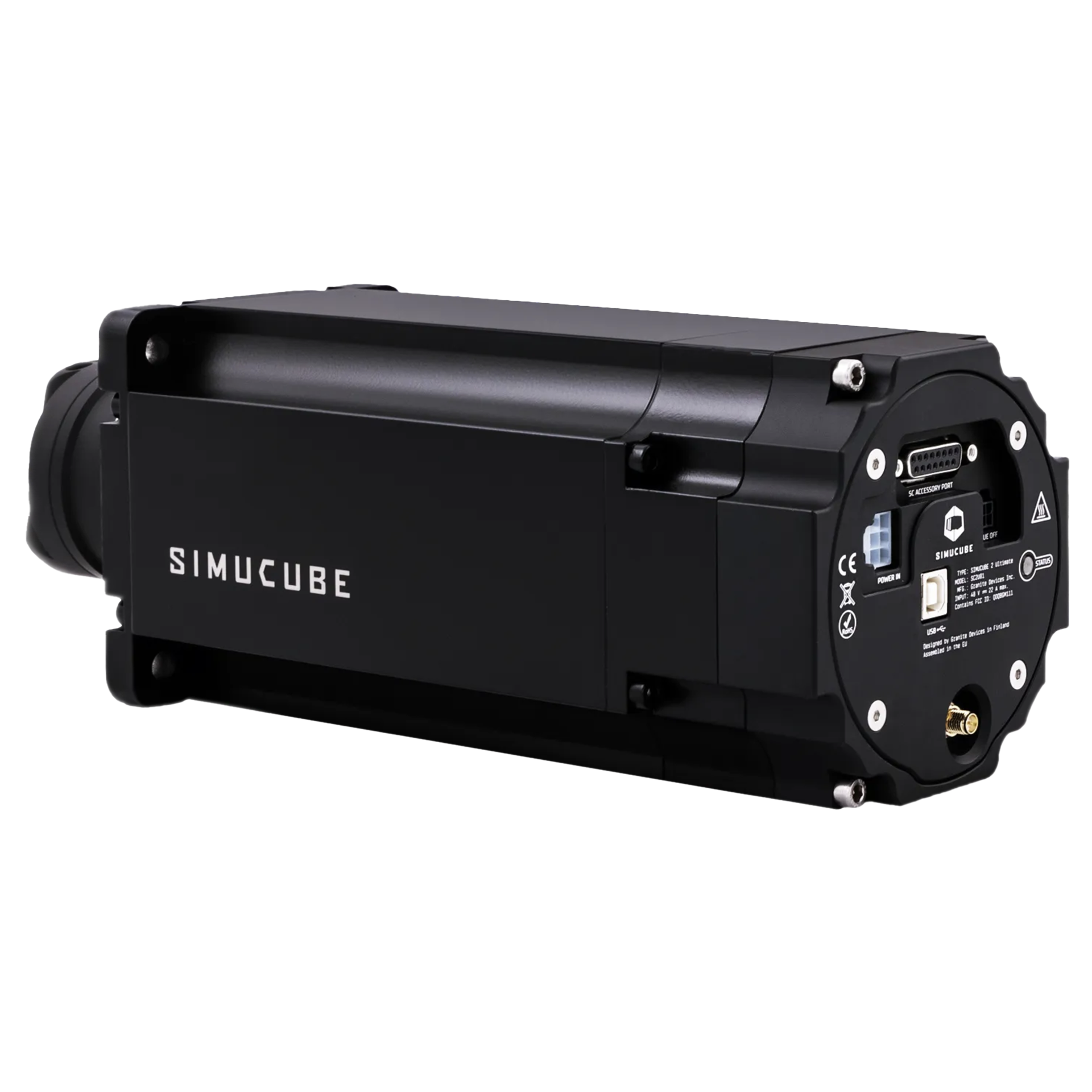

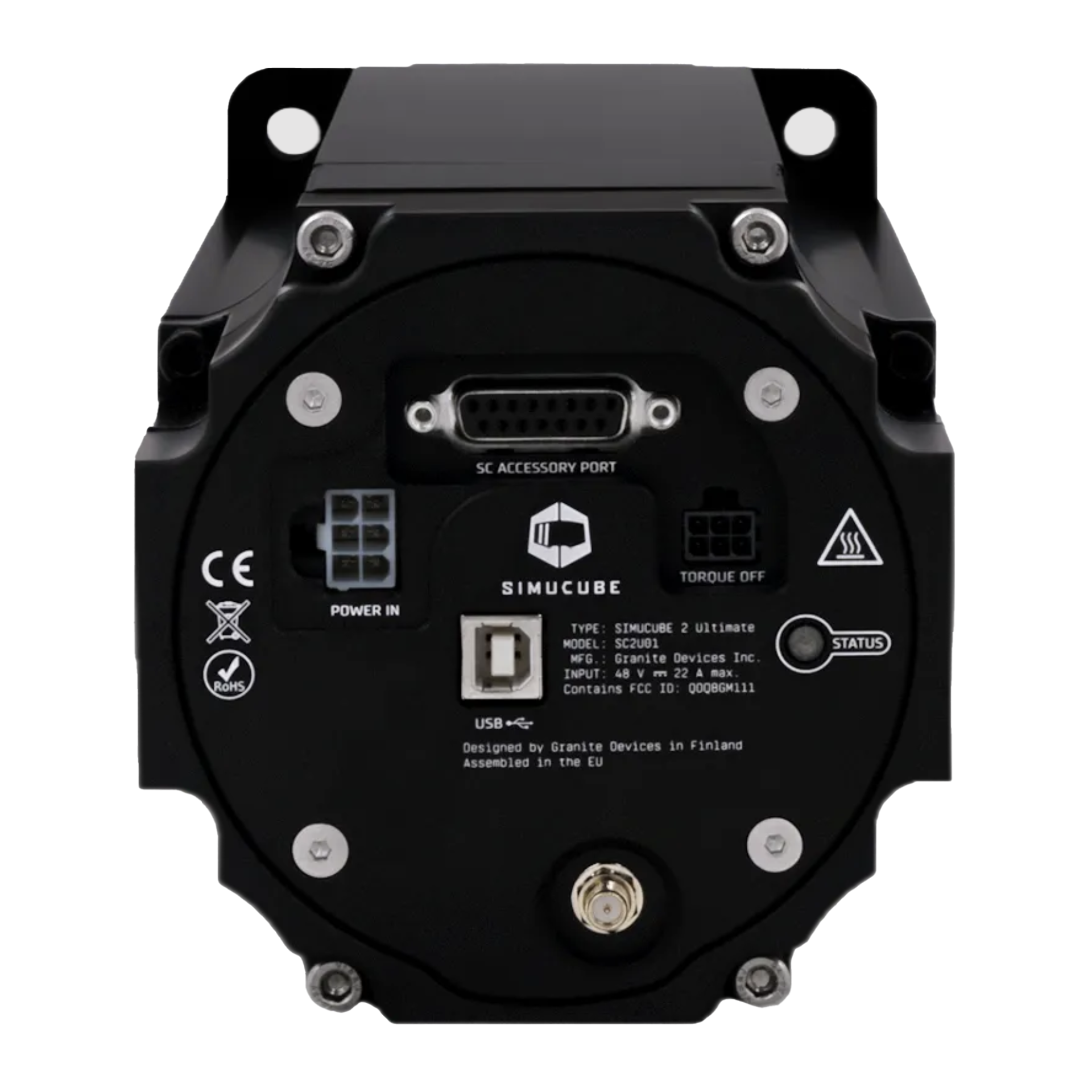

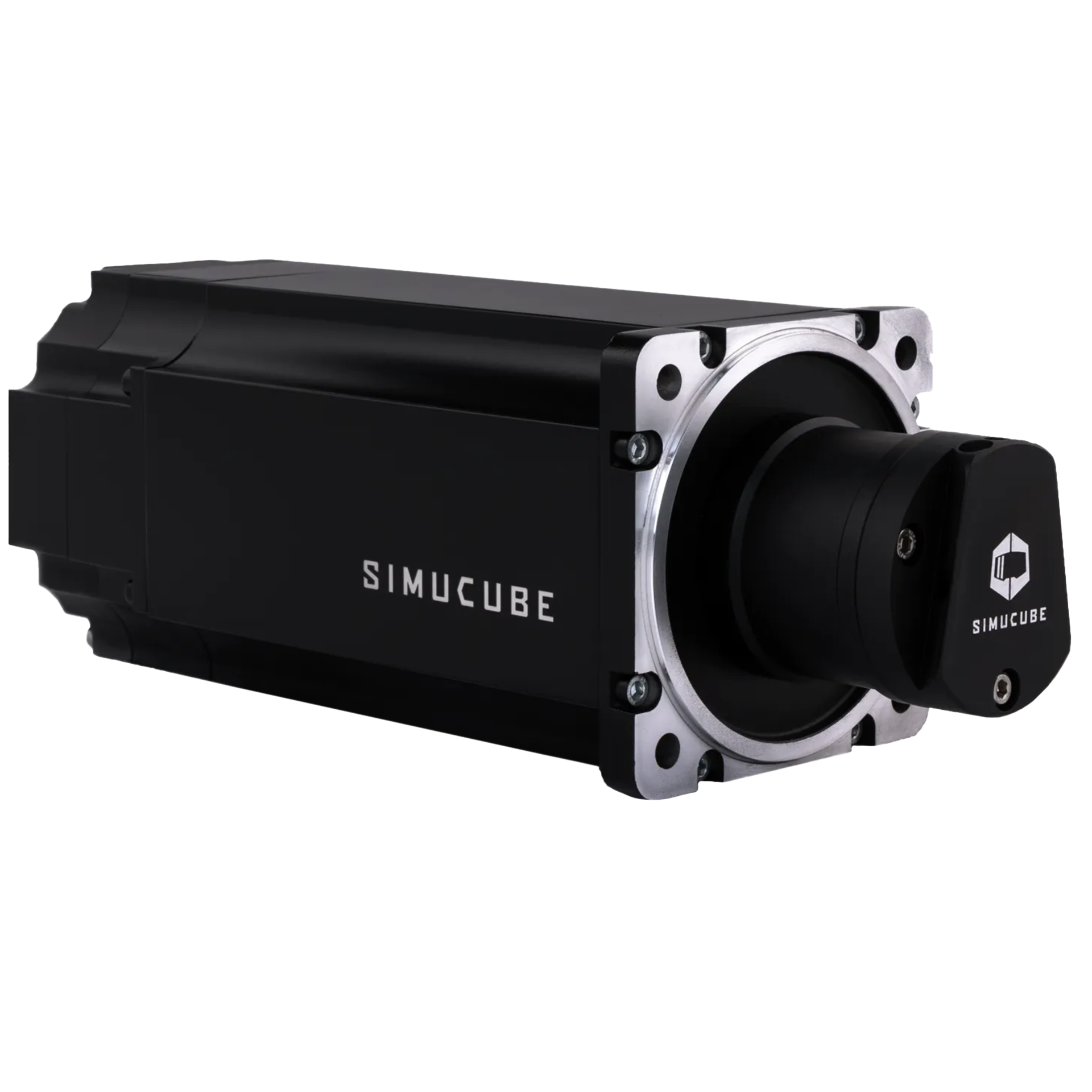

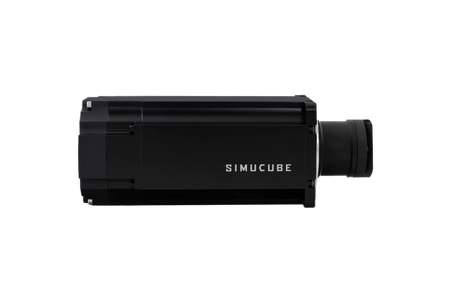

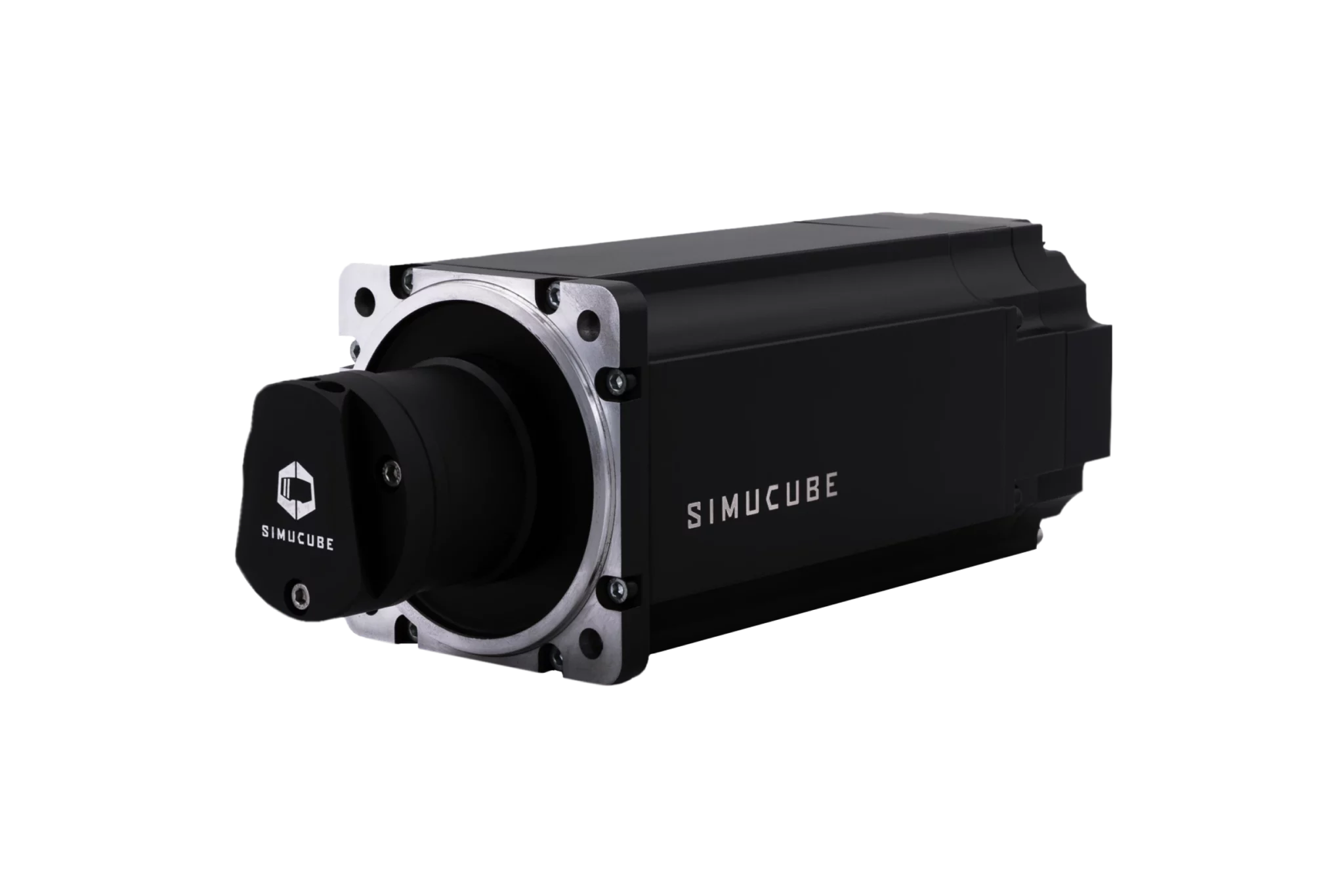

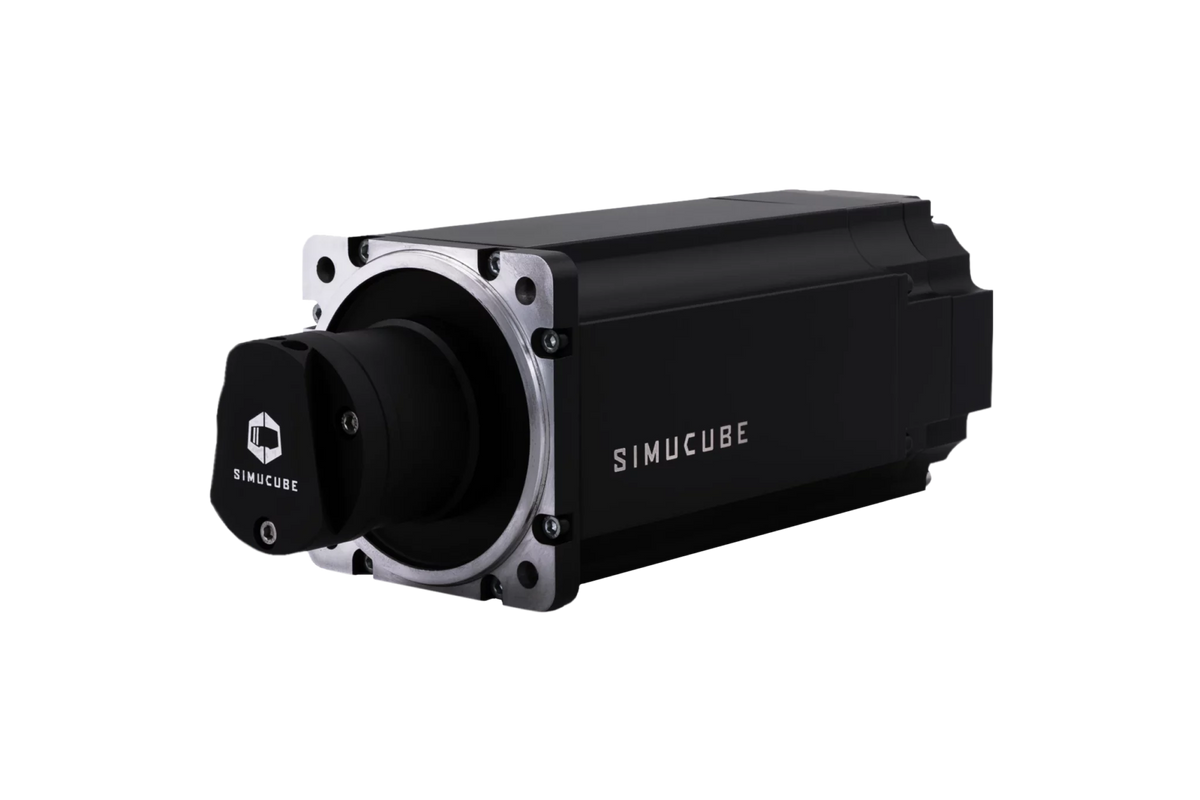

Simucube 2 Ultimate

Simucube 2 Ultimate

Designed for professional racing teams, drivers and racing enthusiasts who breath sim racing.

Now with 360hz force feedback on iRacing.

Dimensions

• Wheel Base Dimensions incl. SQR: 115 x 115 x 310 mm
• Mounting Holes: 9 mm dia x 4 pcs through hole
• Mounting Hole Pattern DIA: 130 mm
• Flange Centering Hole DIA: 110 mm
• Wheel Base Weight: 11.3kg

Specifications

• Motor: Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor
• Max Torque: 32 Nm
• Max Torque Slew Rate: 9.5 Nm/ms
• Angle Sensor: 24 bit hiperface
• Power Supply: 1000 W
• Torque Slew Rate Adjustment: 1. 9.0 Nm/ms
• Torque Reconstruction Processing: Yes
• Static Force Reduction: Yes, in detail adjustable
• Natural Damping, Intertia and Friction Filters: Yes
• Ultra Low Latency Mode: Yes

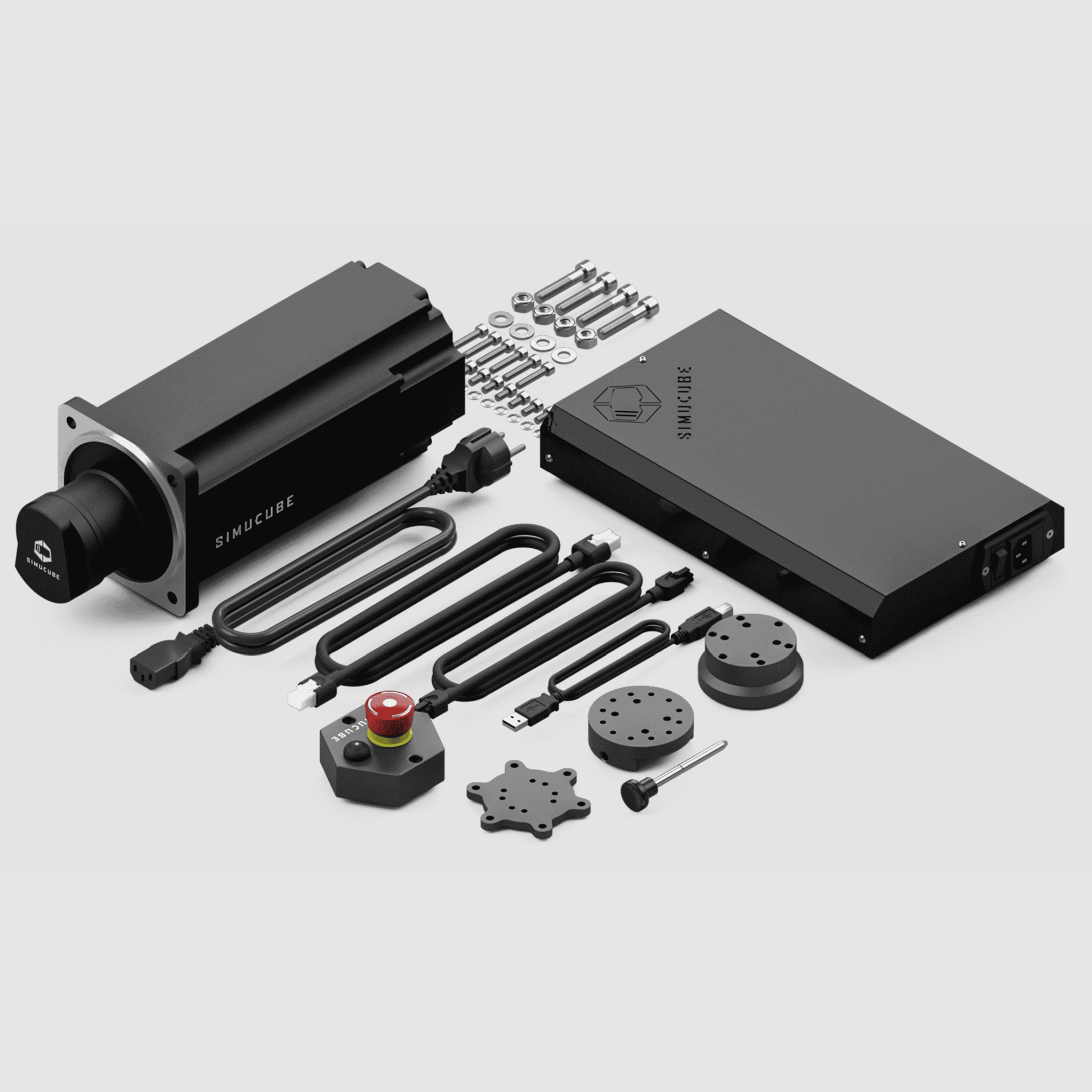

What's included?

Simucube 2 Ultimate Wheel Base

• Power supply
• All required cables
• Premium Standard Torque Off Button
• 4x M8x30 bolts
• Pin for Simucube quick release
• Simucube Quick Release Side Parts
