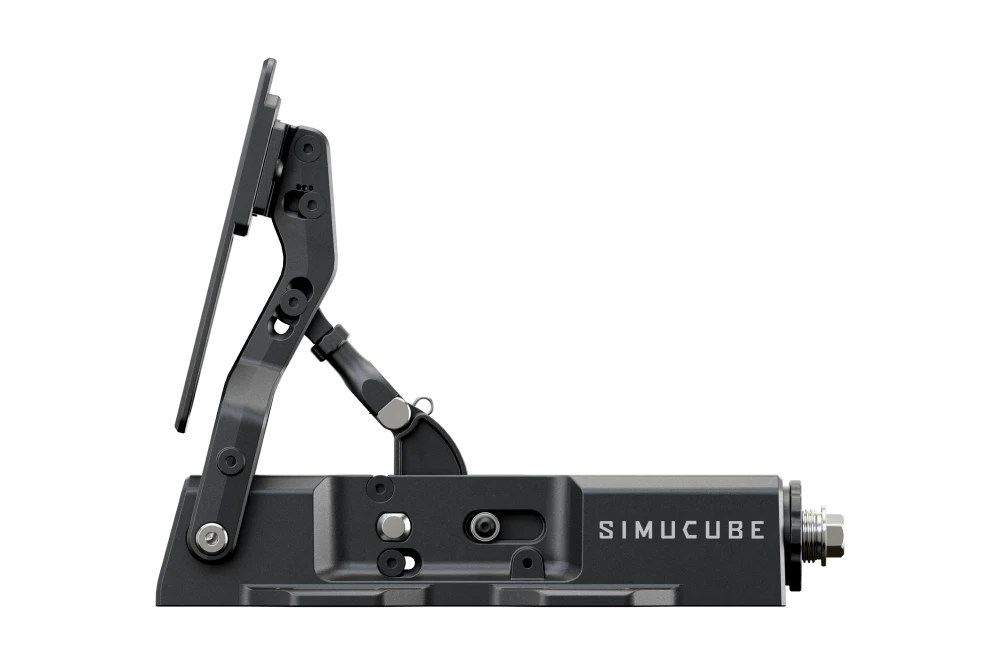

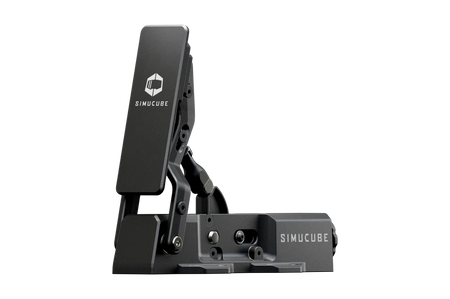

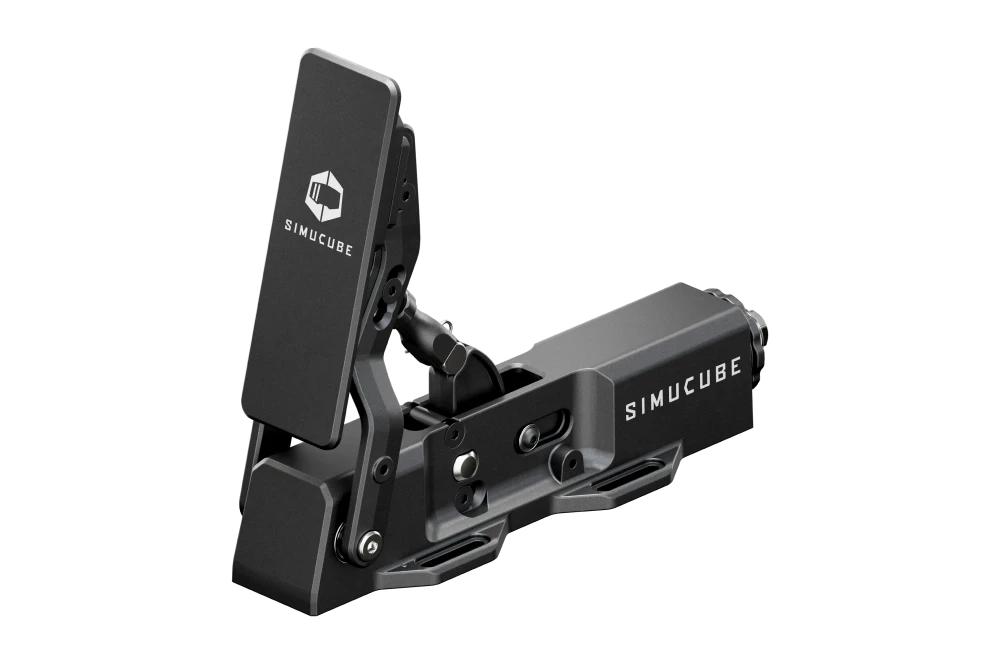

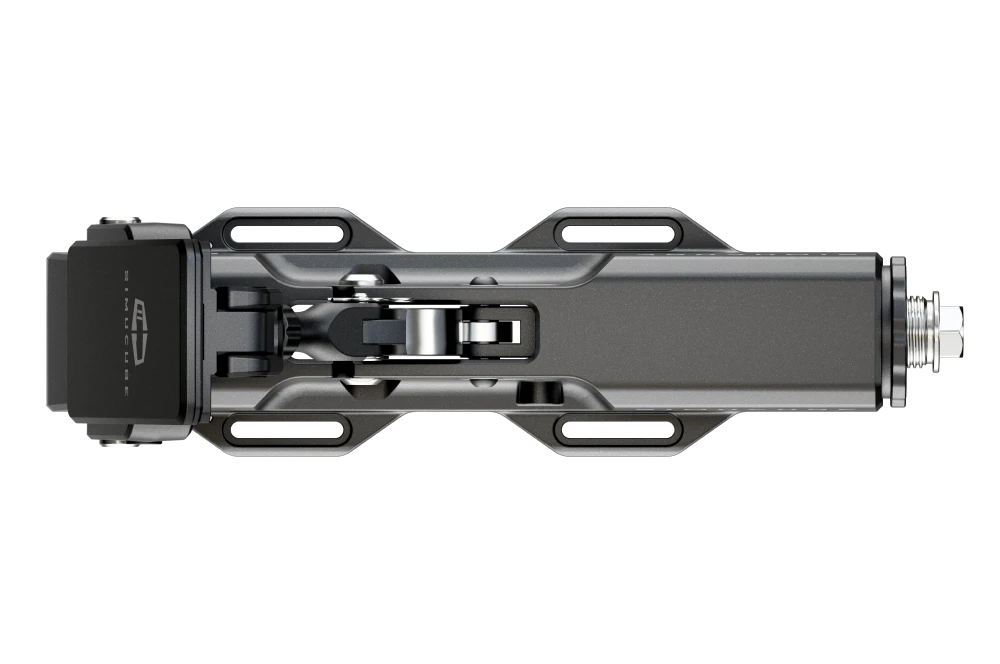

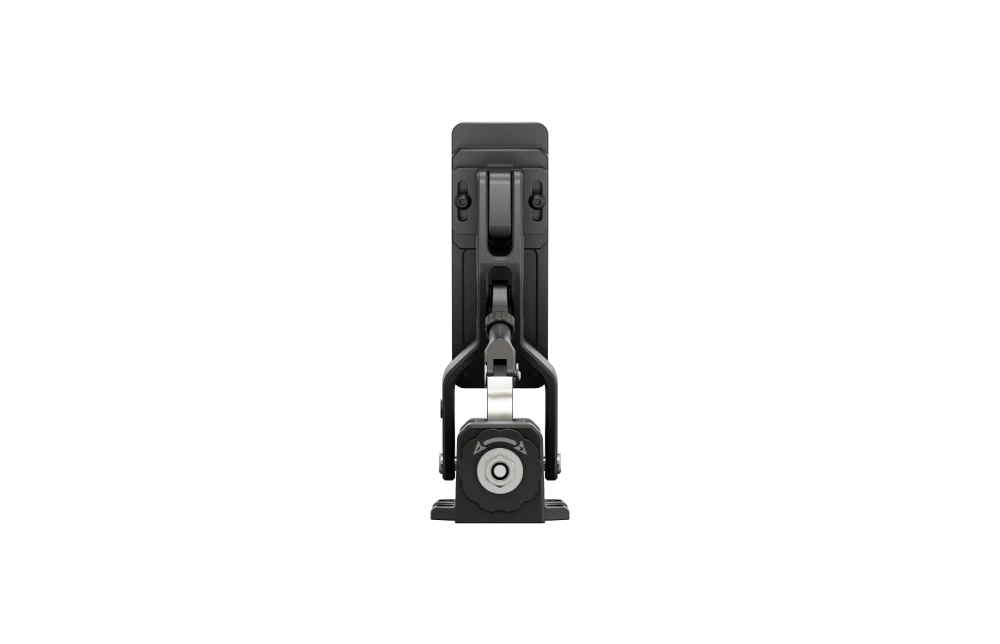

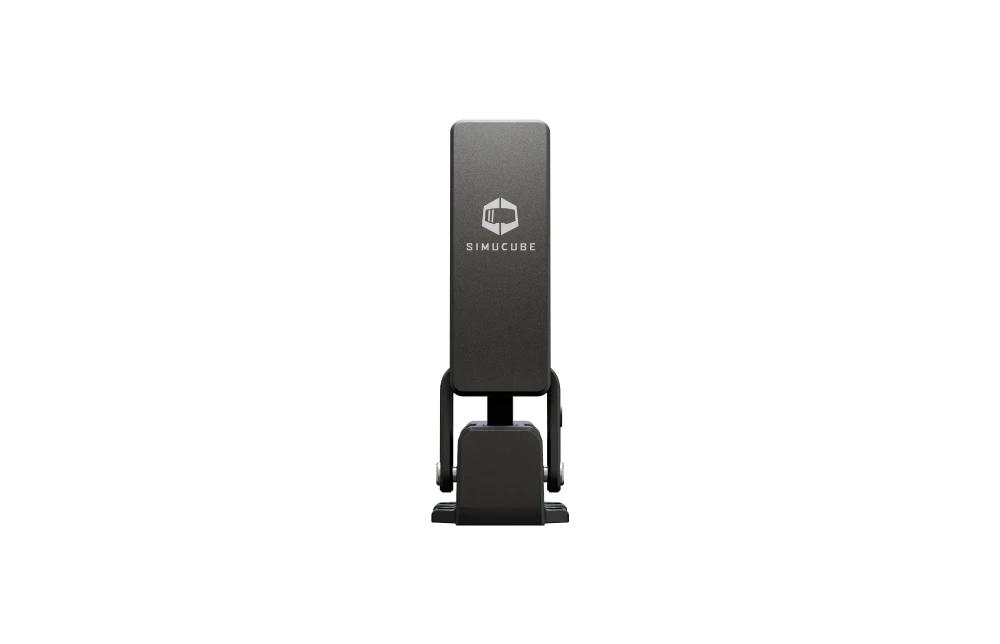

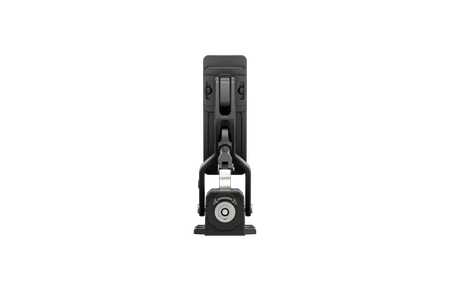

Simucube Co-Pedal

Simucube Co-Pedal

• 2-in-1 solution for both throttle and clutch
• Realistic pedal feel using patented mechanical solution with Arc profiles
• Consistent sensor feedback across entire pedal travel, without dead zones

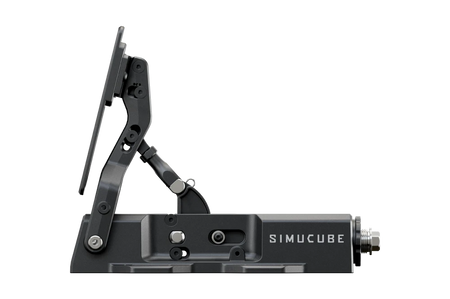

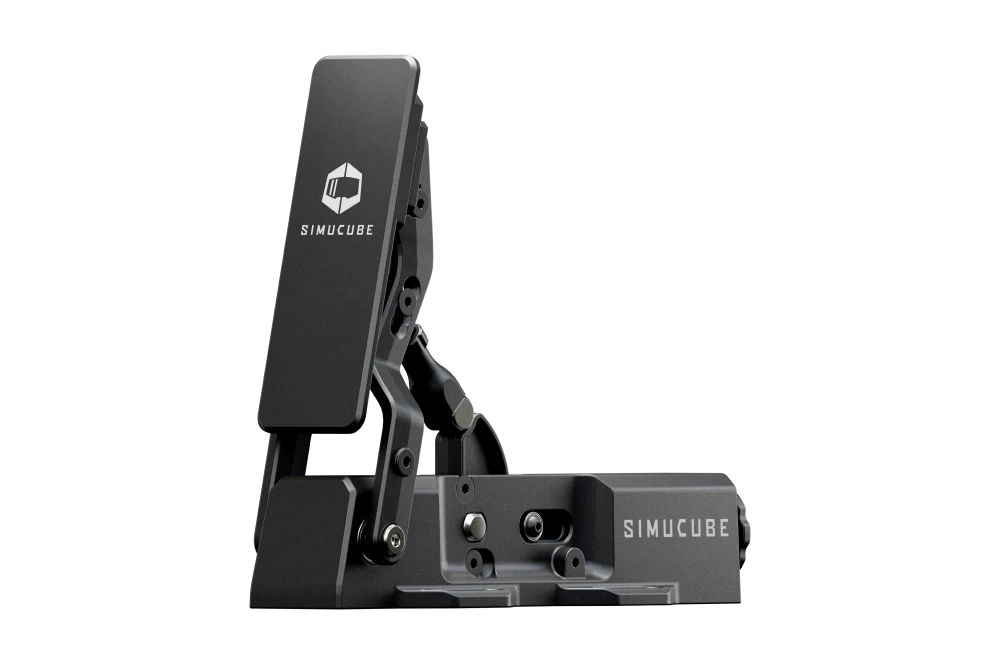

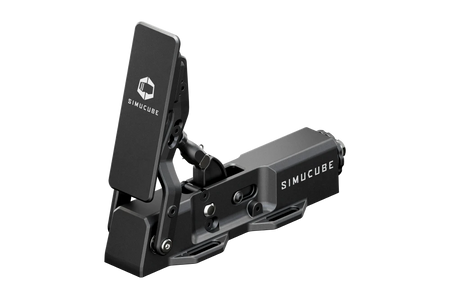

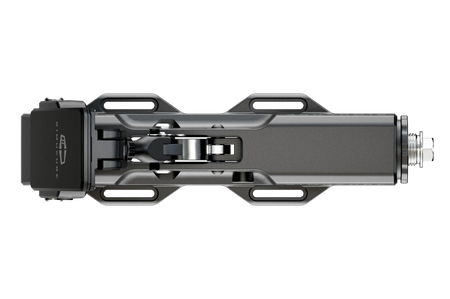

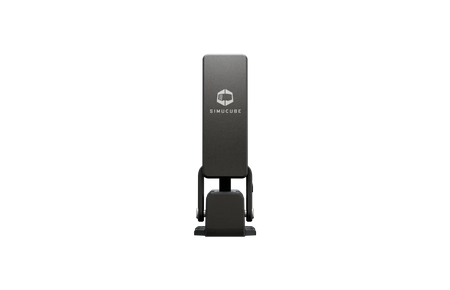

Simucube Co-Pedal is a passive pedal built to perfectly complement Simucube ActivePedal. It can be configured as either a throttle or a clutch, adapting easily to your setup. Preload, travel, pedal angle, and pedal face tilt are all easy to adjust with the included tools. The redesigned shell frame reduces flex and increases stability, giving you a consistent, precise feel in every configuration.

Specifications:

• Dimensions: 242 mm x 83 mm x 308 mm
• Weight: 1,6 kg
• Adjustable travel: 30 mm – 50 mm – 70 mm
• Rest angle: 4 – 14 deg
• Preload range: 0 – 13 mm
• Mounting hole dimensions: 4x M5 slot

Compatibility:

• Simucube ActivePedal Pro
• Simucube ActivePedal Ultimate

What's included?

• 1x Simucube Co-Pedal (preassembled as throttle)
• 1x Clutch pedal face (ActivePedal Ultimate pedal face)
• 1x Clutch spring (stiffer as throttle spring)
• 1x Clutch Arc profile
• 1x RJ25 cable (60 cm) (to connect to an ActivePedal)
• 1x Fastener set for aluminium profile and baseplate mount
• 1x 4mm Hex key with ball-tip and T-handle
• Special tool for pre-load screw
• 1x Quick start guide
