Simucube 3 Ultimate

Backorder
Regular price €3.214,80 EUR

Product not in stock? Contact us.

Sales@ArtisansofSpeed.vip

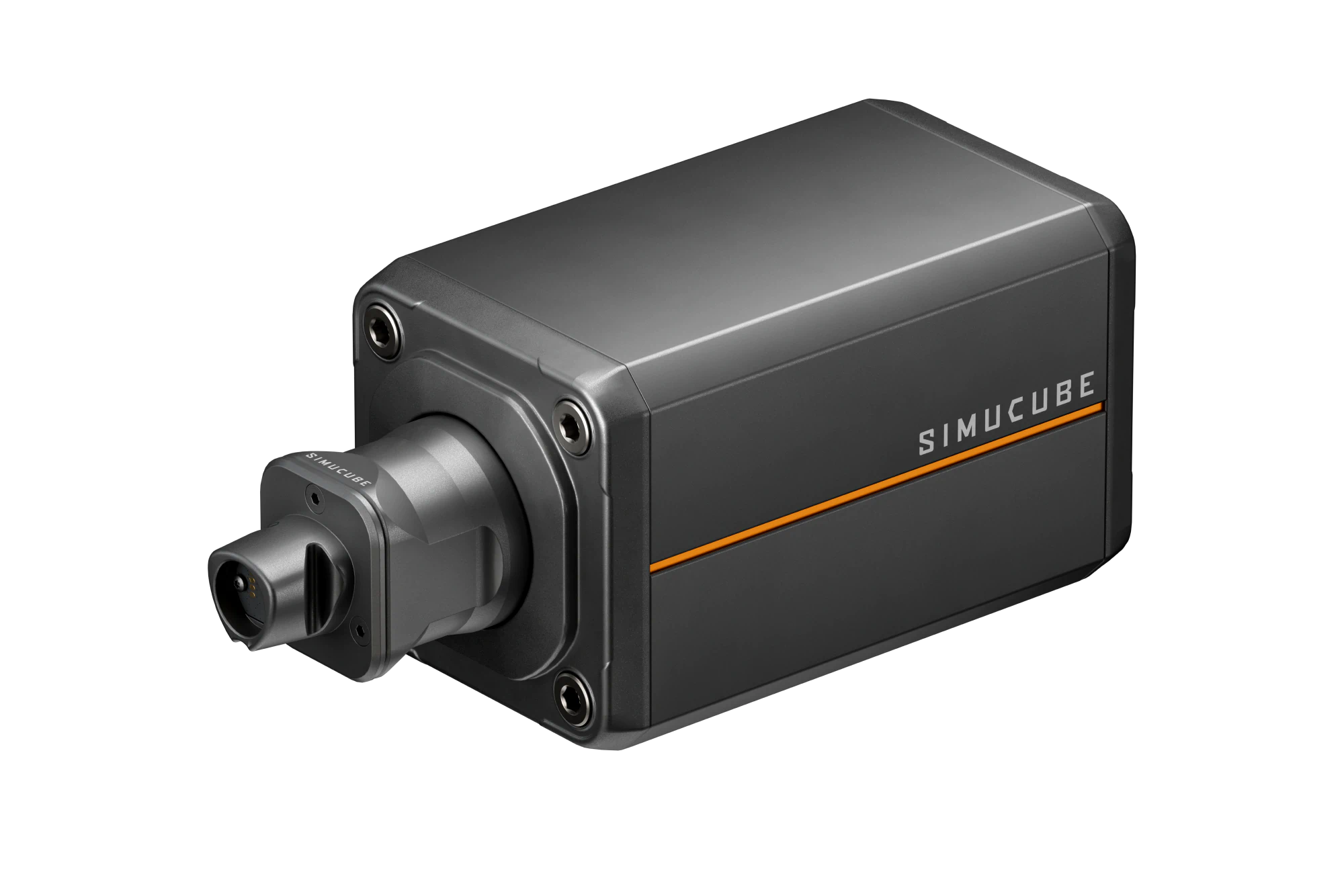

Simucube 3 Ultimate

  • Precise, smooth, industry-leading direct drive force feedback (35 Nm)
  • Industrial-grade servo motors engineered exclusively for Simucube
  • Enhanced detail – telemetry‑based effects like ABS, RPM, and road texture
  • Completely re-engineered the control algorithm for maximum accuracy and silent performance
  • Frictionless setup – front & bottom mounting, versatile adapters



Simucube 3 Ultimate is a direct drive force feedback wheelbase that raises performance to an entirely new level, with demands so high it required a completely new type of motor. Featuring an advanced direct drive optimized IPM motor and it offers 35 Nm of torque with maximum response speed, all while using less power. Professional-grade performance, taken to the next level.

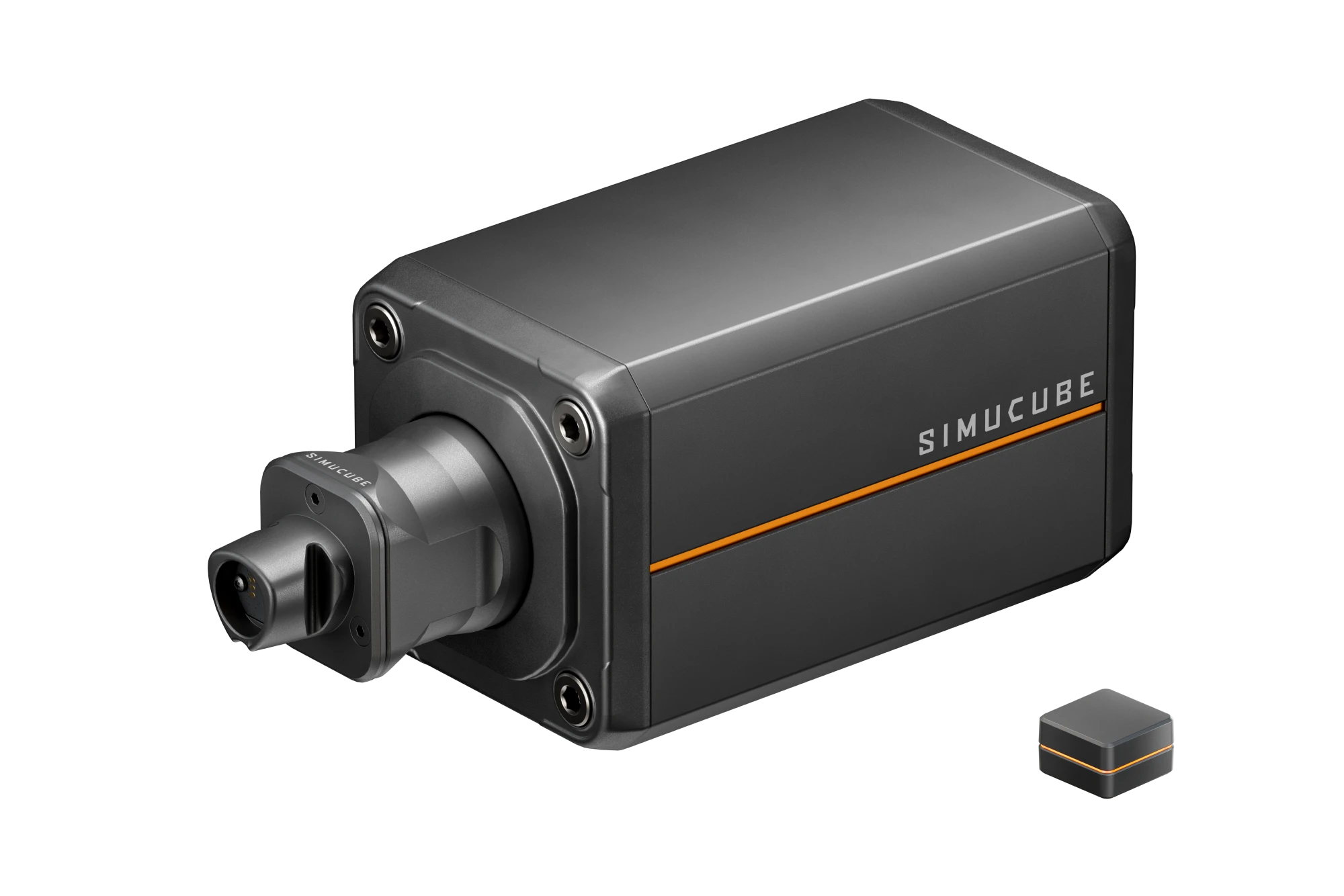

Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.

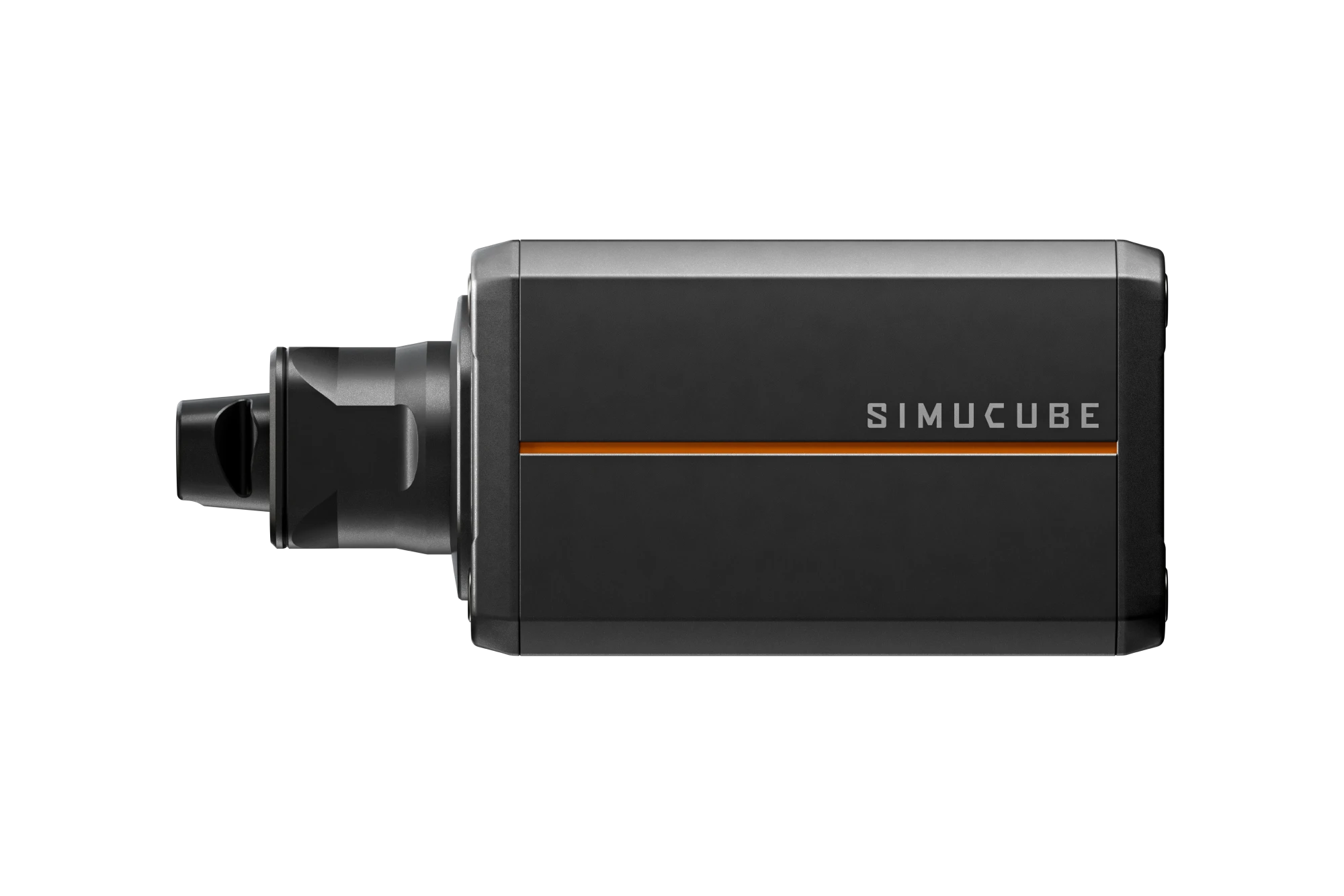

Dimensions

  • Wheel base dimensions: 135 x 135 x 323 mm
  • Package dimensions: 190 x 300 x 390 mm

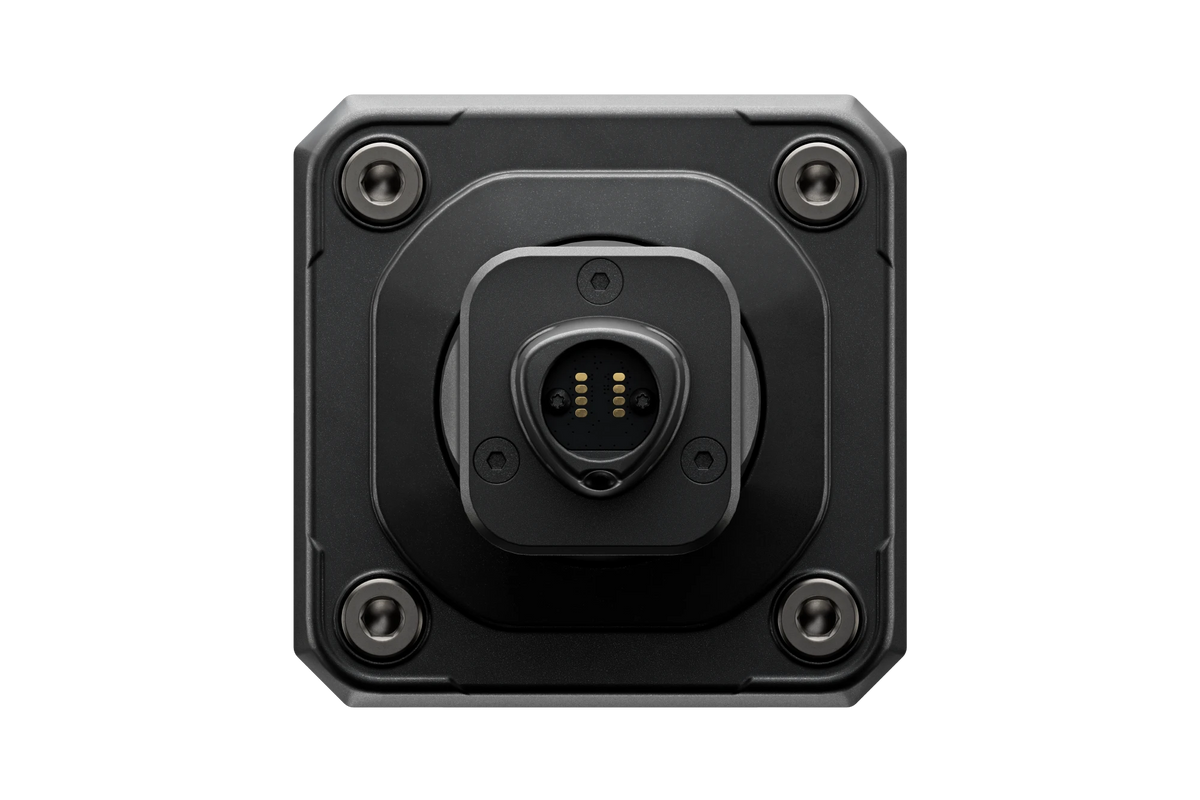

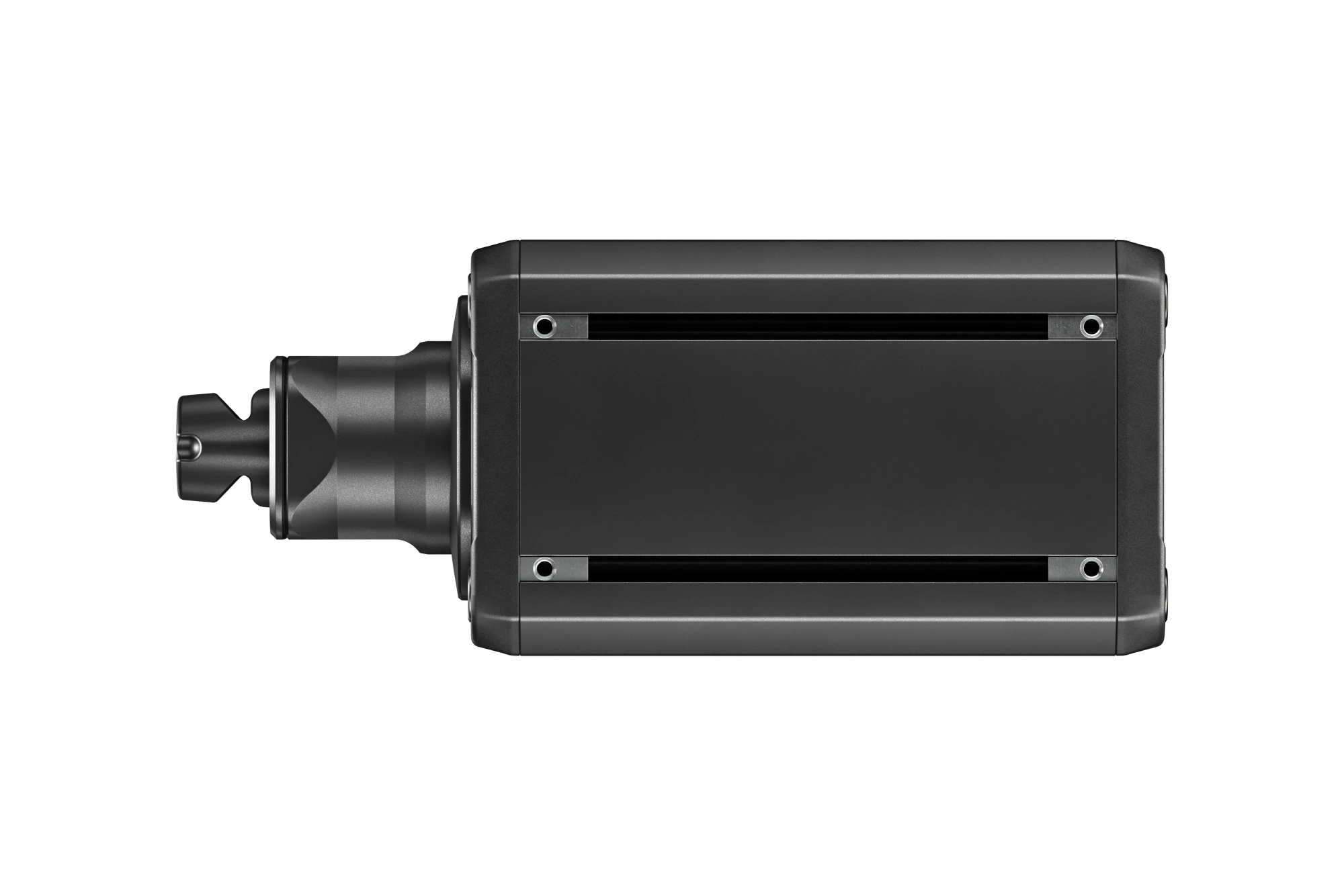

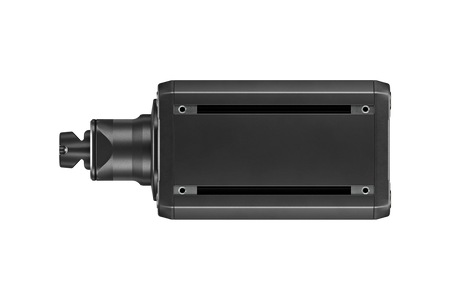

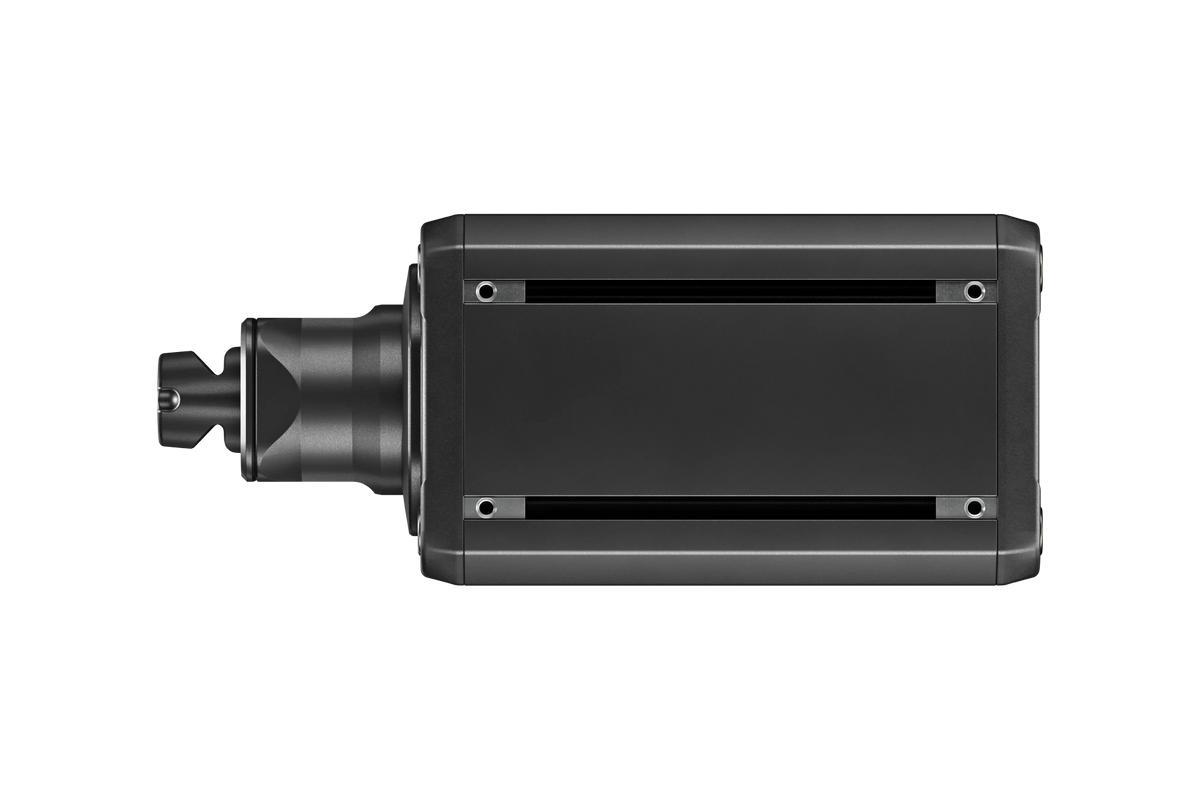

  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 13 kg



Specifications

  • Motor type: IPM motor. Maximum response speed. Direct drive optimized IPM motor
  • Max torque: 35 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 360 W (450 W peak)
  • Warranty: 5 years



What's included?

Simucube 3 Ultimate Wheelbase

  • Power adapter
  • RJ45 Cable
  • AC power cord
  • Quick Start Guide
  • Control box

Fasteners kit

  • 4x M8 washer
  • 4x M6 washer
  • 2x M5 washer
  • 4x M8x35 allen head bolt
  • 4x M8x30 allen head bolt
  • 2x M5x30 allen head bolt
  • 4x M6x16 allen head bolt
  • 2x M5 t-slot nut 8mm slot



Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub.
