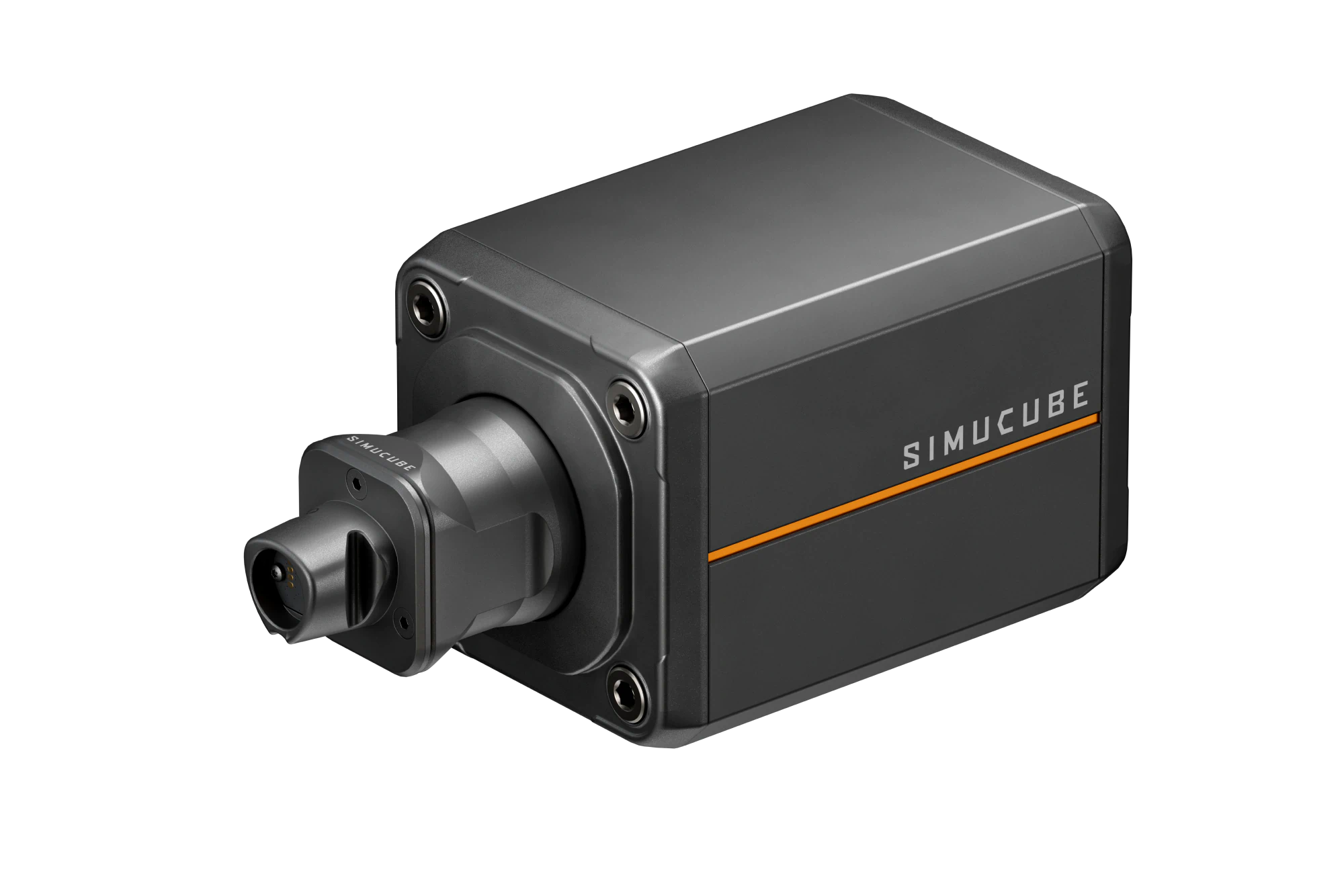

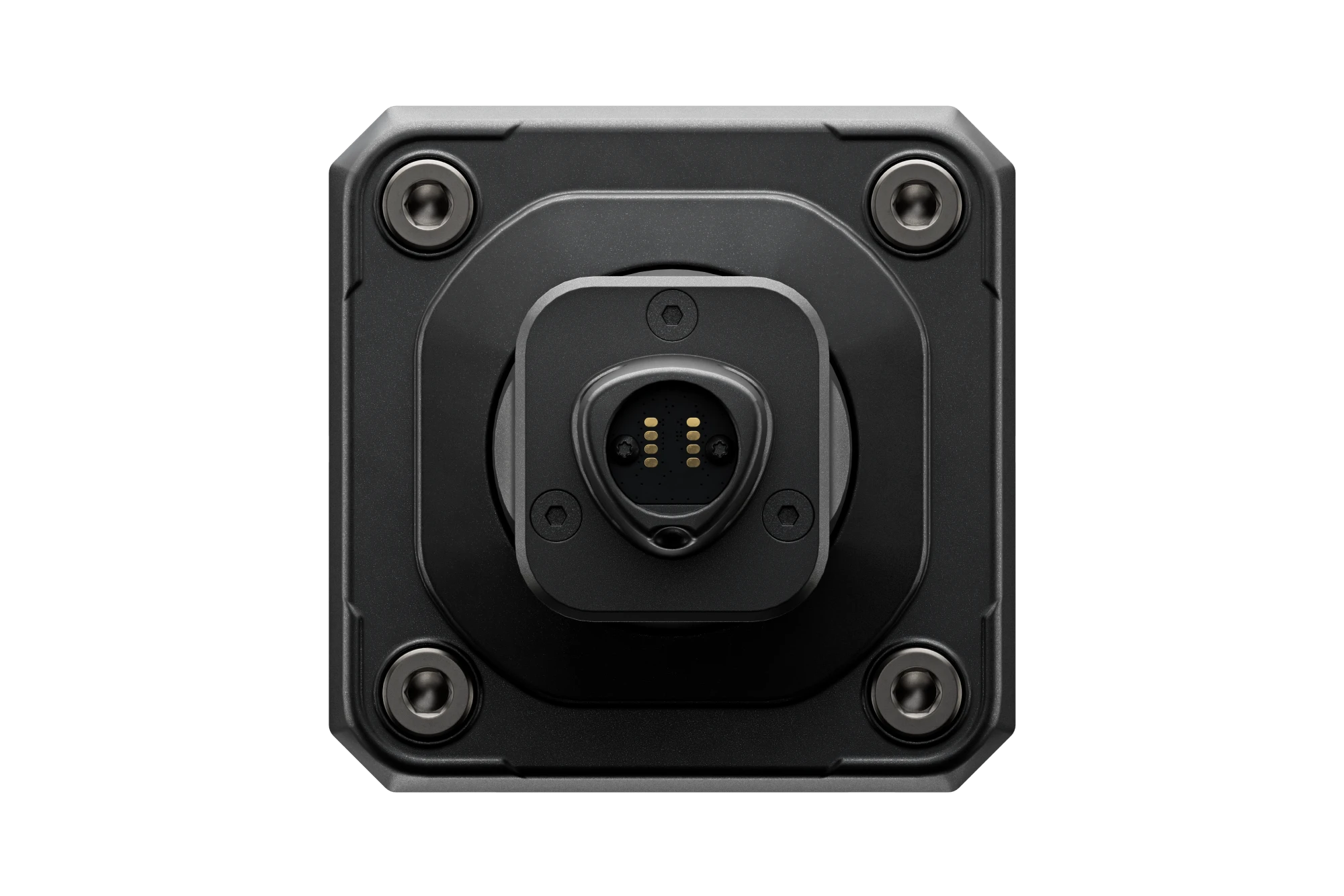

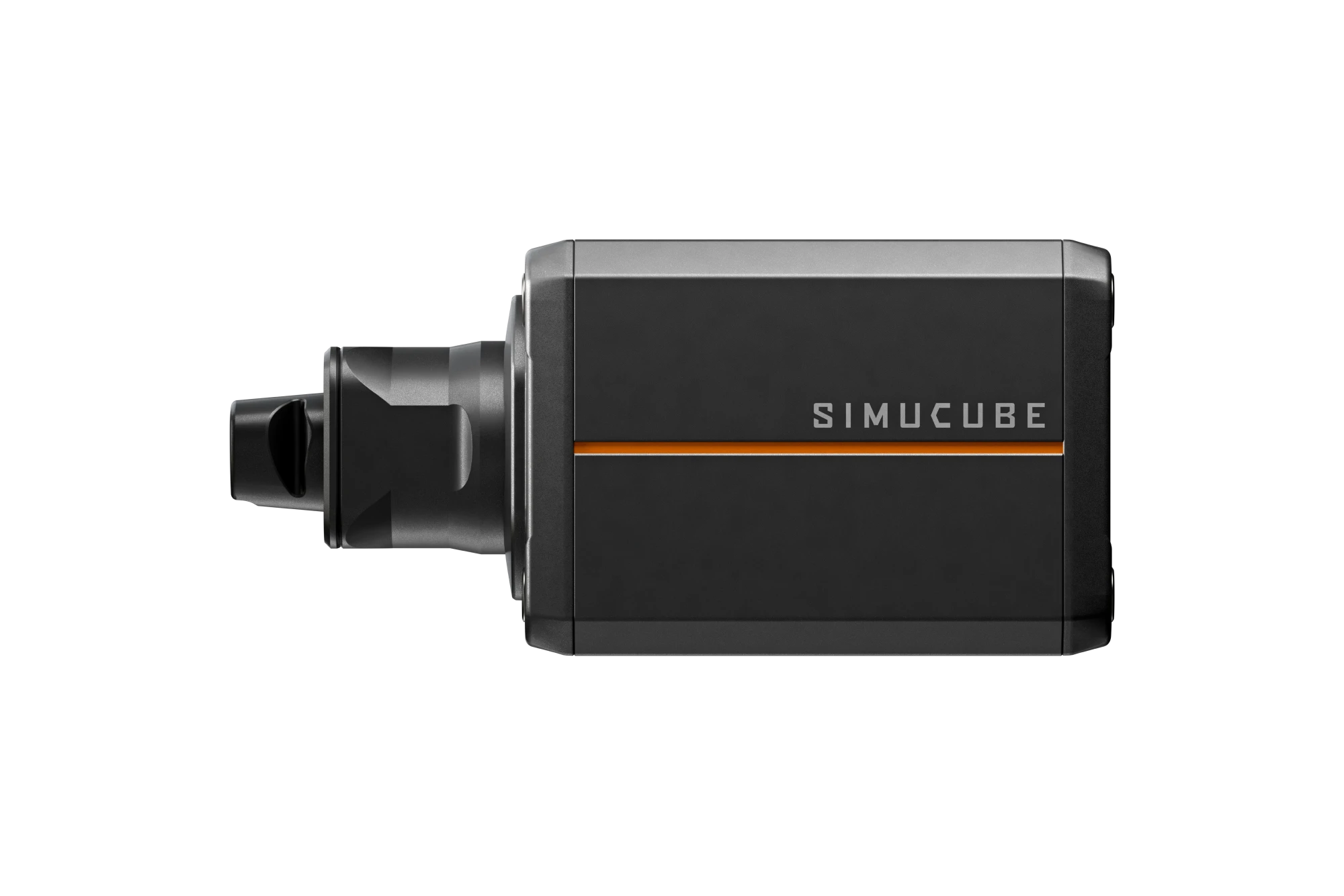

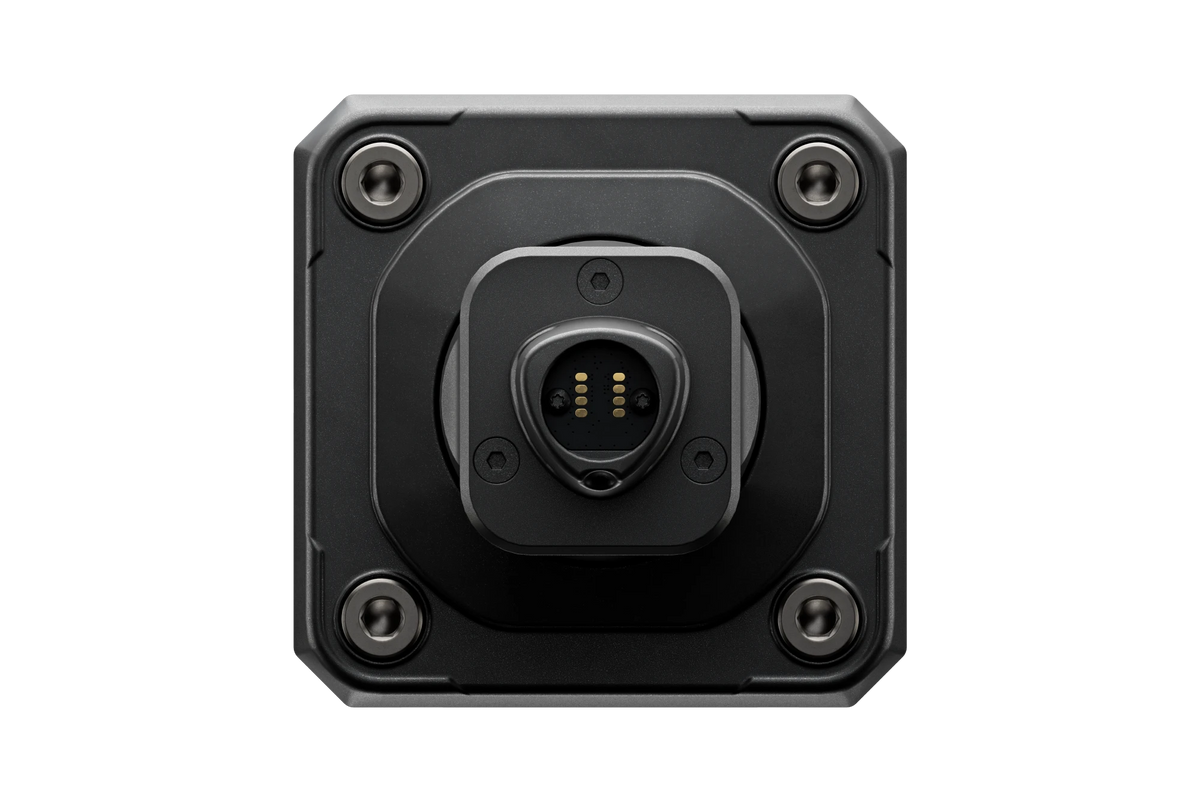

Simucube 3 Sport

Backorder
€1.246,80 EUR

Product not in stock? Contact us.

Sales@ArtisansofSpeed.vip

Simucube 3 Sport

  • Precise, smooth, industry-leading direct drive force feedback (15 Nm)
  • Industrial-grade servo motors engineered exclusively for Simucube
  • Enhanced detail – telemetry‑based effects like ABS, RPM, and road texture
  • Completely re-engineered the control algorithm for maximum accuracy and silent performance
  • Frictionless setup – front & bottom mounting, versatile adapters



Simucube 3 Sport shares the same features as the Simucube 3 Pro model, delivering benchmark direct drive force feedback with 15 Nm peak torque instead of 25 Nm, powered by the new-generation SPM motor. It’s still hardware you buy once — only now in a lighter package.

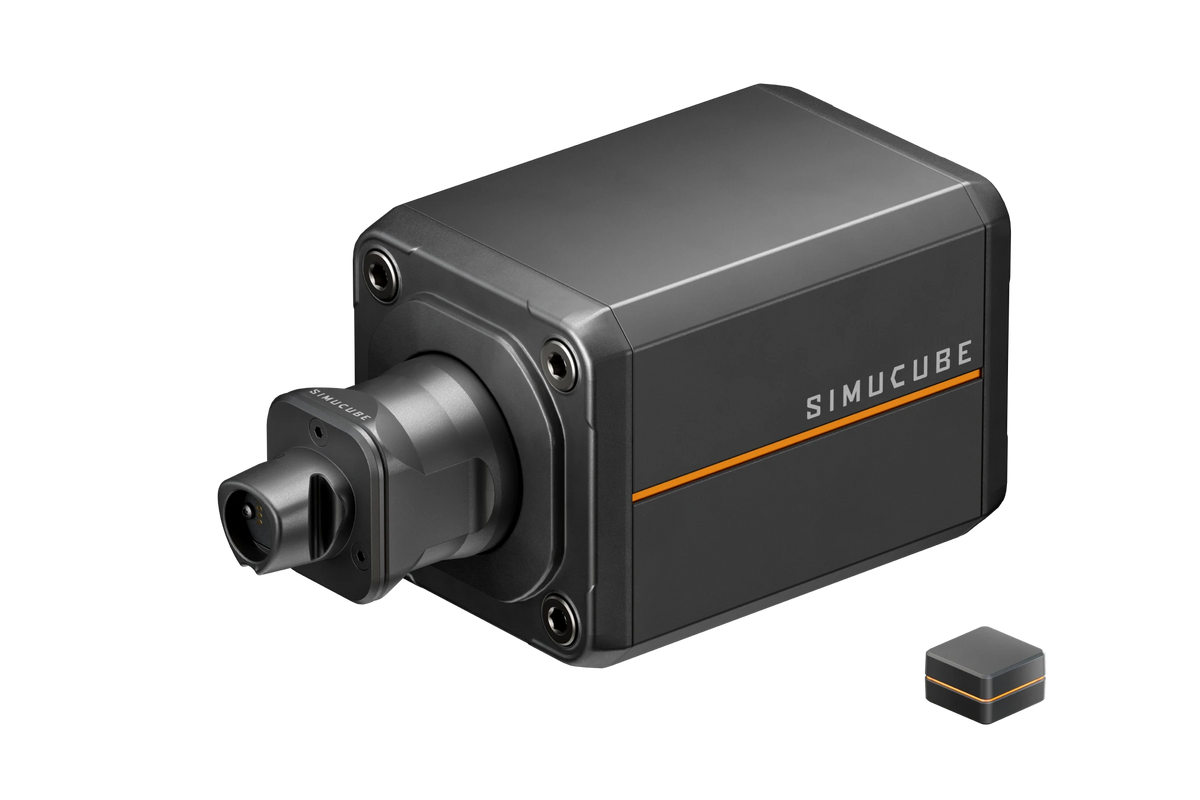

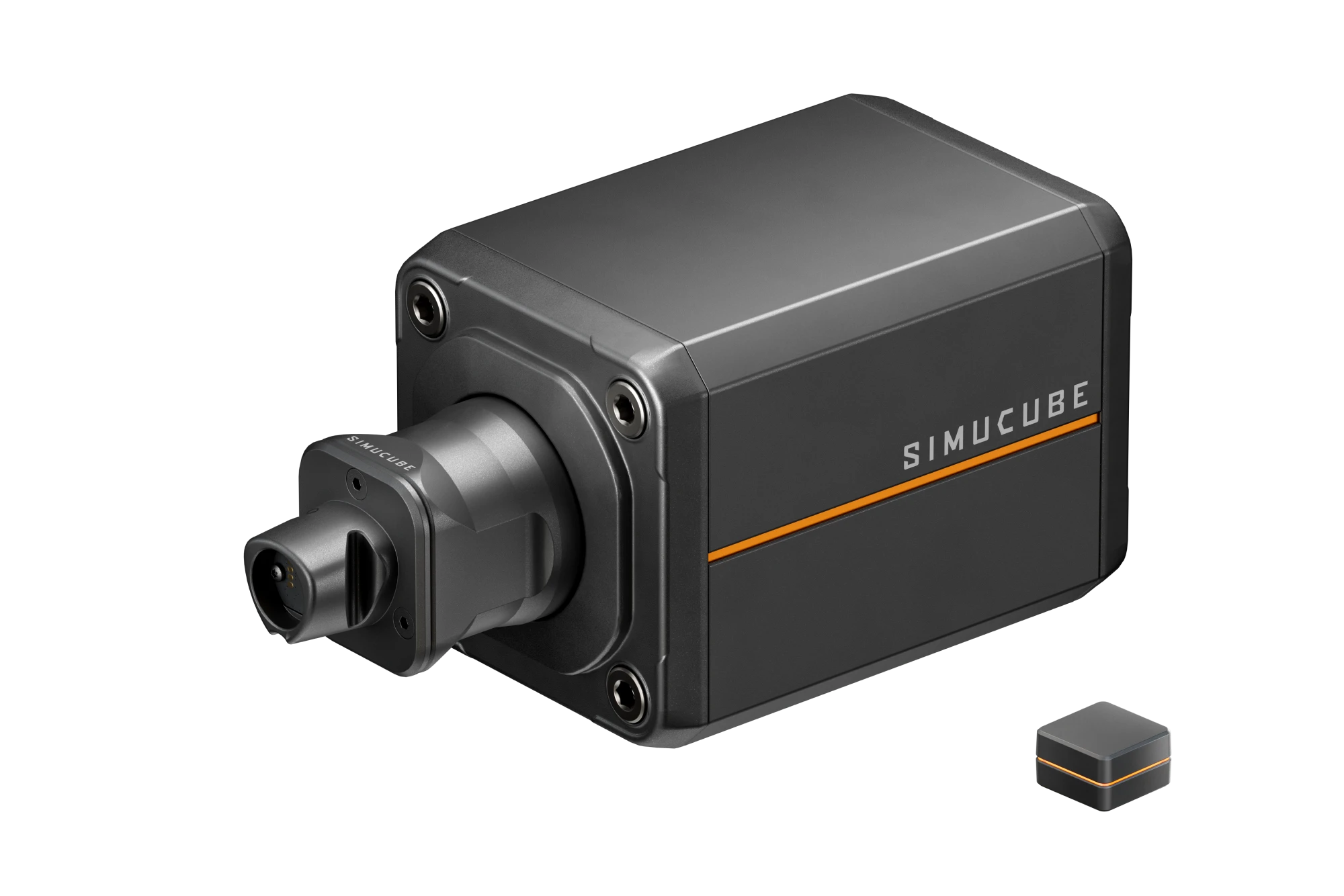

Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.



Dimensions

  • Wheel base dimensions: 135 x 135 x 278 mm
  • Package dimensions: 190 x 300 x 390 mm

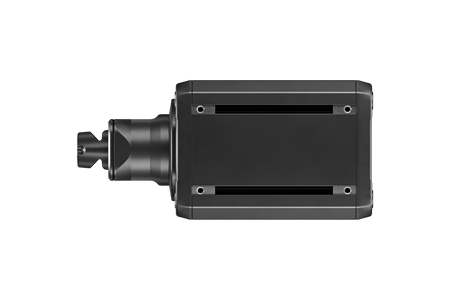

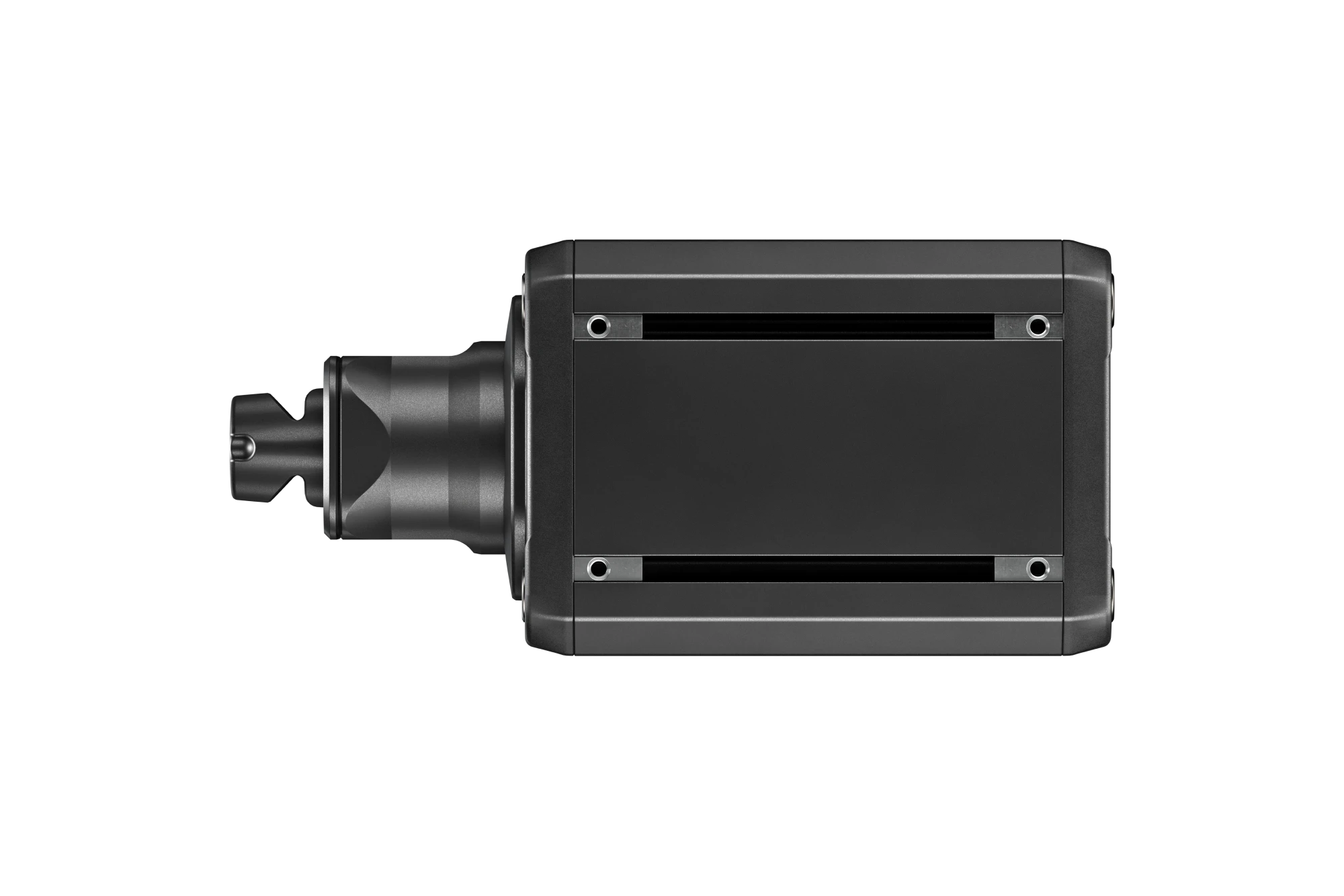

  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 8.7 kg



Specifications

  • Motor type: Direct drive optimized SPM motor
  • Max torque: 15 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 280 W
  • Warranty: 3 years



What's included?

Simucube 3 Sport Wheelbase

  • Power adapter
  • RJ45 Cable
  • AC power cord
  • Quick Start Guide
  • Control box

Fasteners kit

  • 4x M8 washer
  • 4x M6 washer
  • 2x M5 washer
  • 4x M8x35 allen head bolt
  • 4x M8x30 allen head bolt
  • 2x M5x30 allen head bolt
  • 4x M6x16 allen head bolt
  • 2x M5 t-slot nut 8mm slot



Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub.
