Qubic System QS-220 - 3DOF

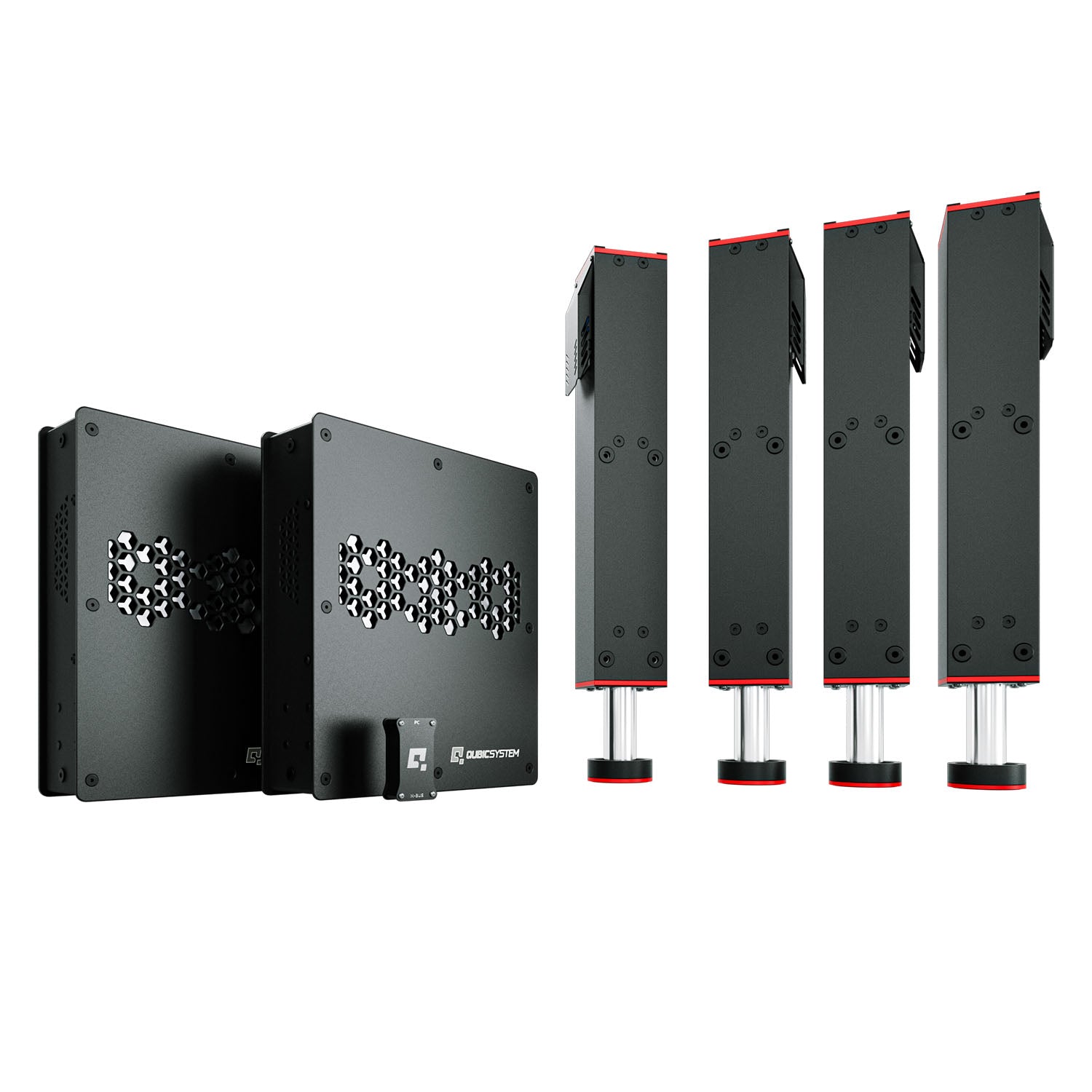

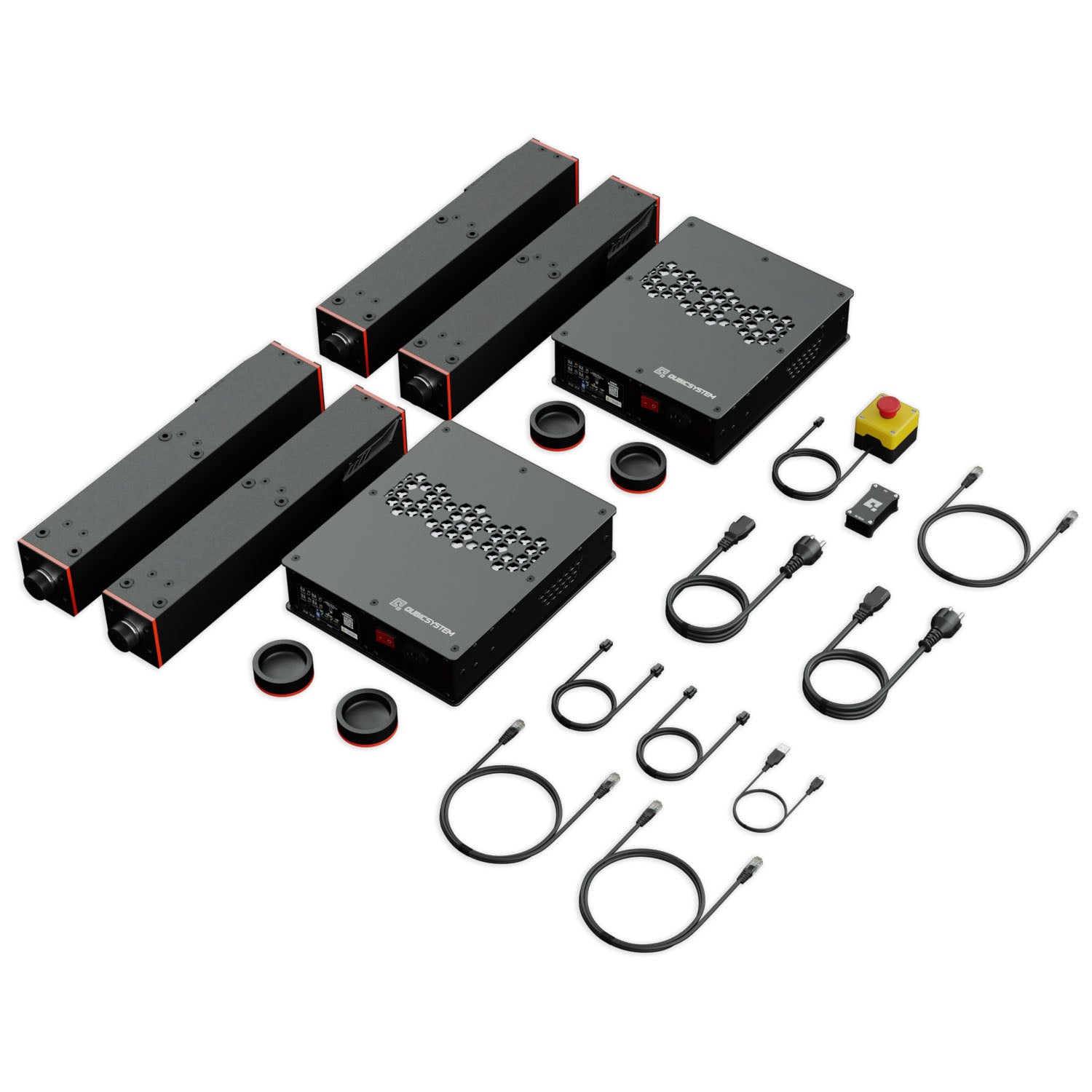

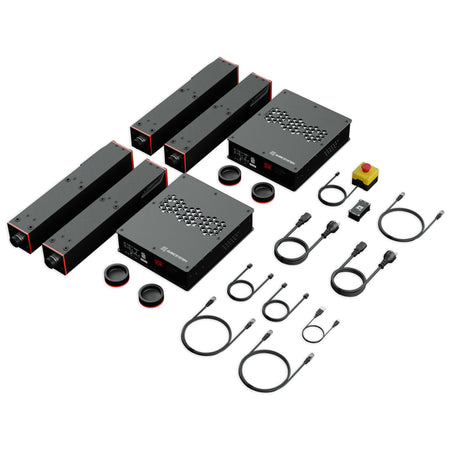

Qubic System QS-220 - 3DoF - 4 actuators

Innovative technology, modular and compact design, as well as the extremely quiet operation makes the 3DOF QS-220 as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220 can be configured with dedicated cockpits from Qubic System product line.

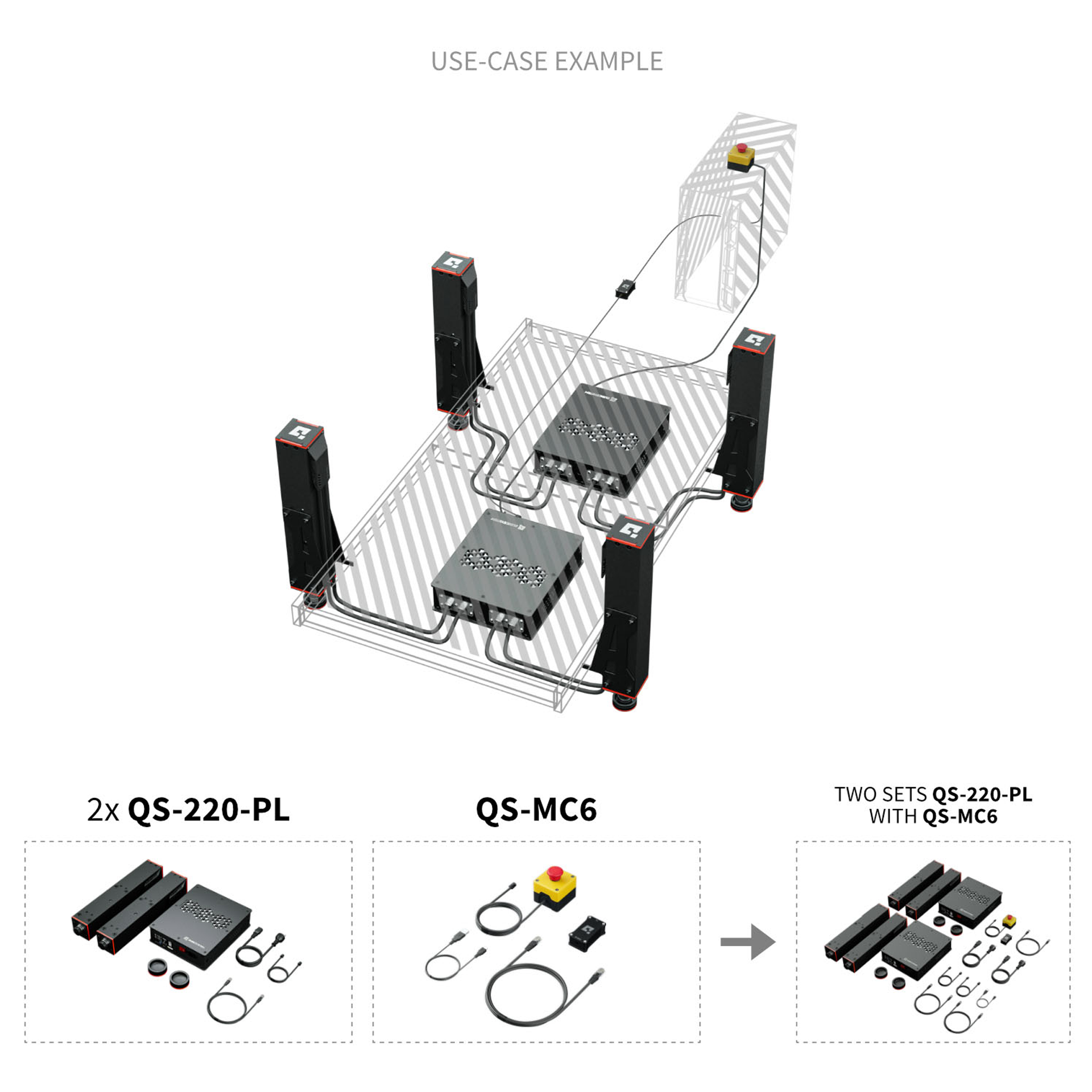

In combination with this 2 actuator set, additional sets of QS-220-PL can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6DOF.

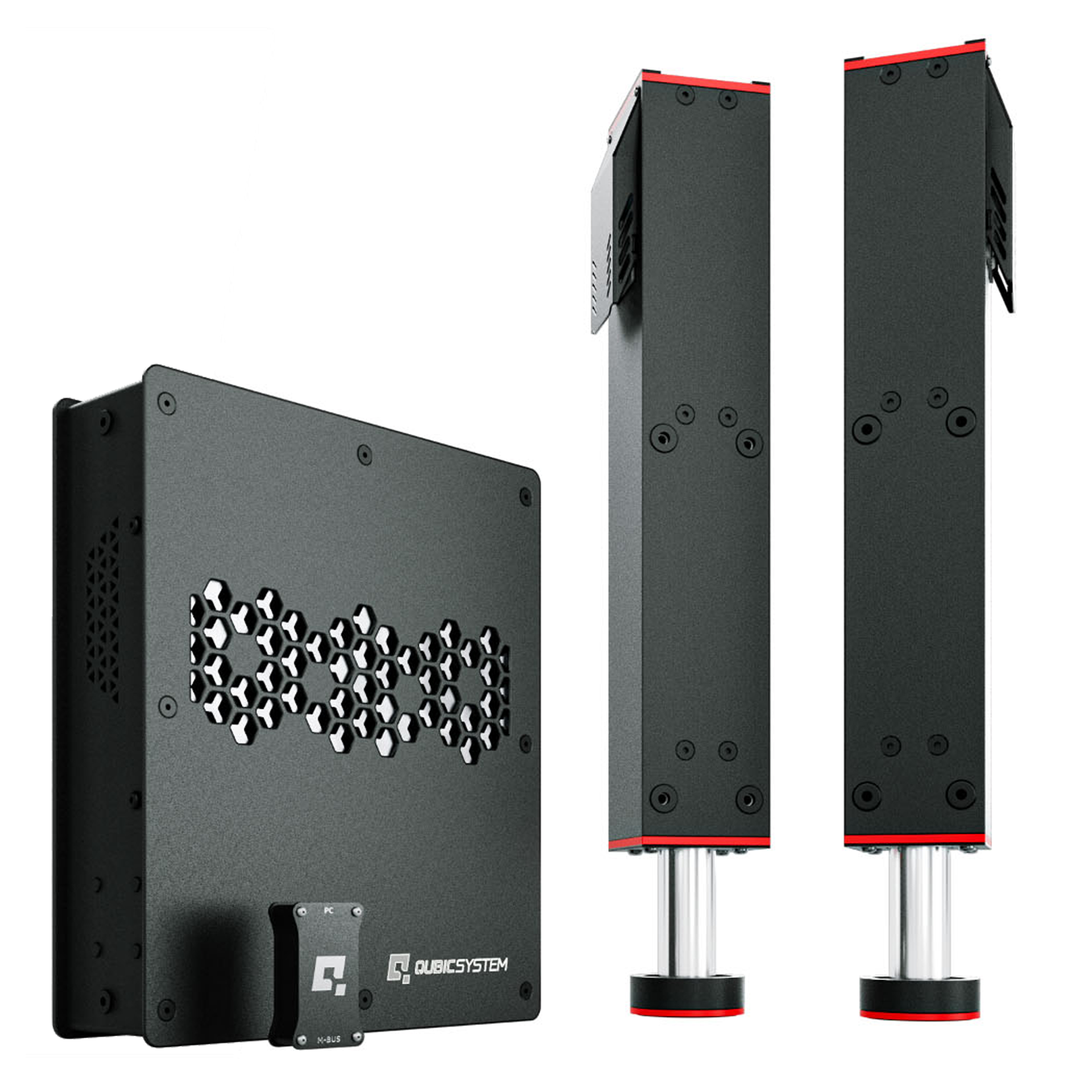

The QS-220-PL Intro Set consisting of two actuators, power module and motion controller (QS-MC6) is the perfect solution for all drivers who start their adventure with simracing and want to come into the virtual world of competition or need a 2DOF as a first motion platform.

Undoubtedly, one of the greatest advantages of the Qubic System brand is the ability to seamlessly expand the motion system with additional actuators kit, quickly and easily creating extraordinary and original motion cockpits in a 3DOF configuration or even 6DOF with additional special designed accessories.

Technical specifications:

Actuator stroke: 100 mm

Maximum velocity:
◦ Q-Mode (230V): 800 mm/s
◦ Performance Mode (115V/230V): 400 mm/s
◦ Heavy Duty Mode (115/230V): 300 mm/s

Maximum acceleration:
◦ Q-Mode (230V): 0.8G*
◦ Performance Mode (115V/230V): 0.7G*
◦ Heavy Duty Mode (115/230V): 0.4G*
*value of acceleration is limited for safety reasons

Payload in 3DOF (2x QS-220-PL) configuration:
◦ Q-Mode: 200 kg
◦ Performance Mode: 250 kg
◦ Heavy Duty Mode: 350 kg

Vibrations frequency range: 0-100 Hz
Maximum control frequency: 1000 Hz
Latency: <8 ms

Product weight: 30 kg | 66 lb

POWER REQUIREMENTS
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
◦ Q-Mode: 260W (230V)
◦ Performance Mode: 280W (230V), 270W (115V)
◦ Heavy Duty Mode: 436W (230V), 462W (115V)

Peak current for breaker specification in 3DOF configuration:
◦ Q-Mode: 5.17A (230V)
◦ Performance Mode: 4.55A (230V), 7.35A (115V)
◦ Heavy Duty Mode: 5.88A (230V), 9.89A (115V)

Connection: USB
