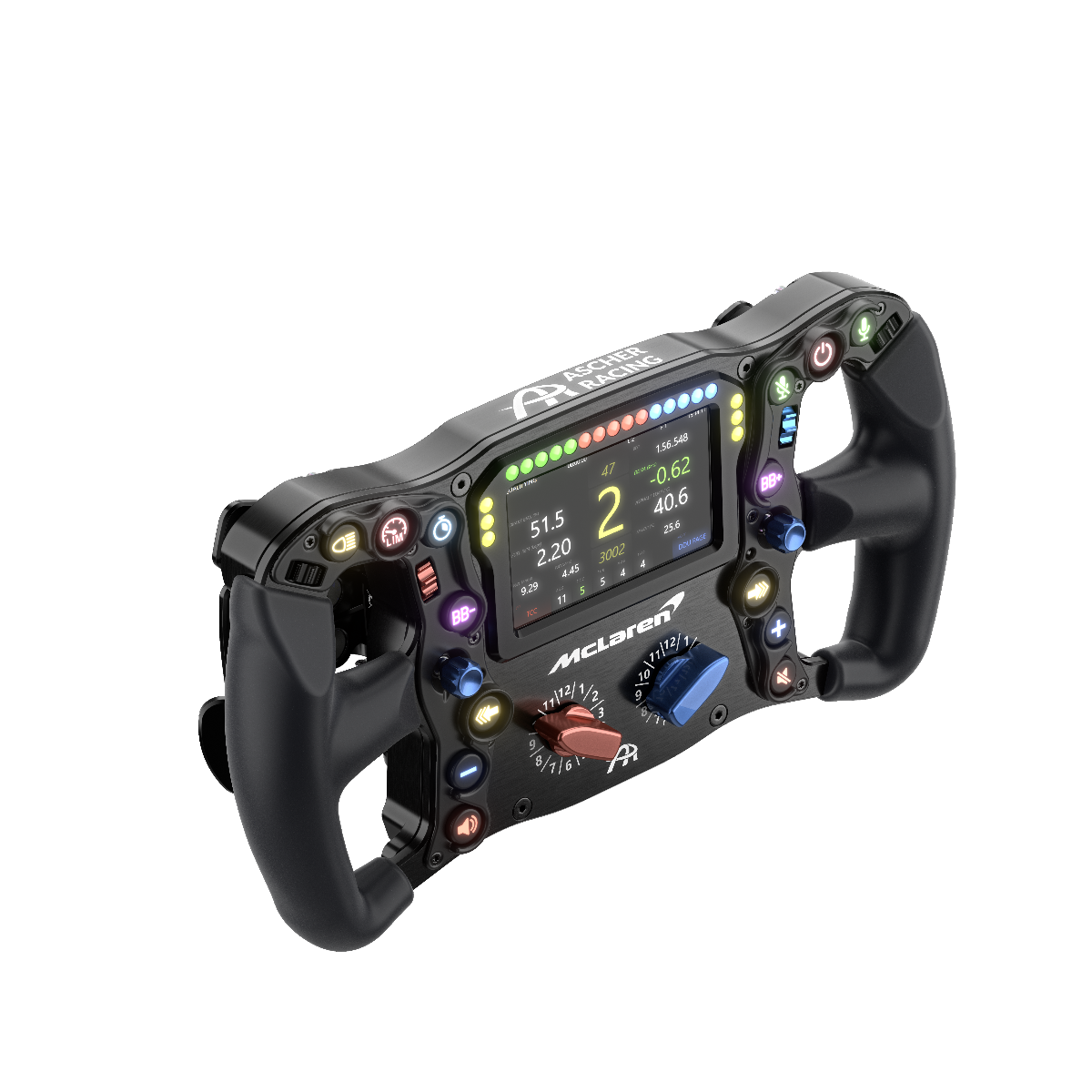

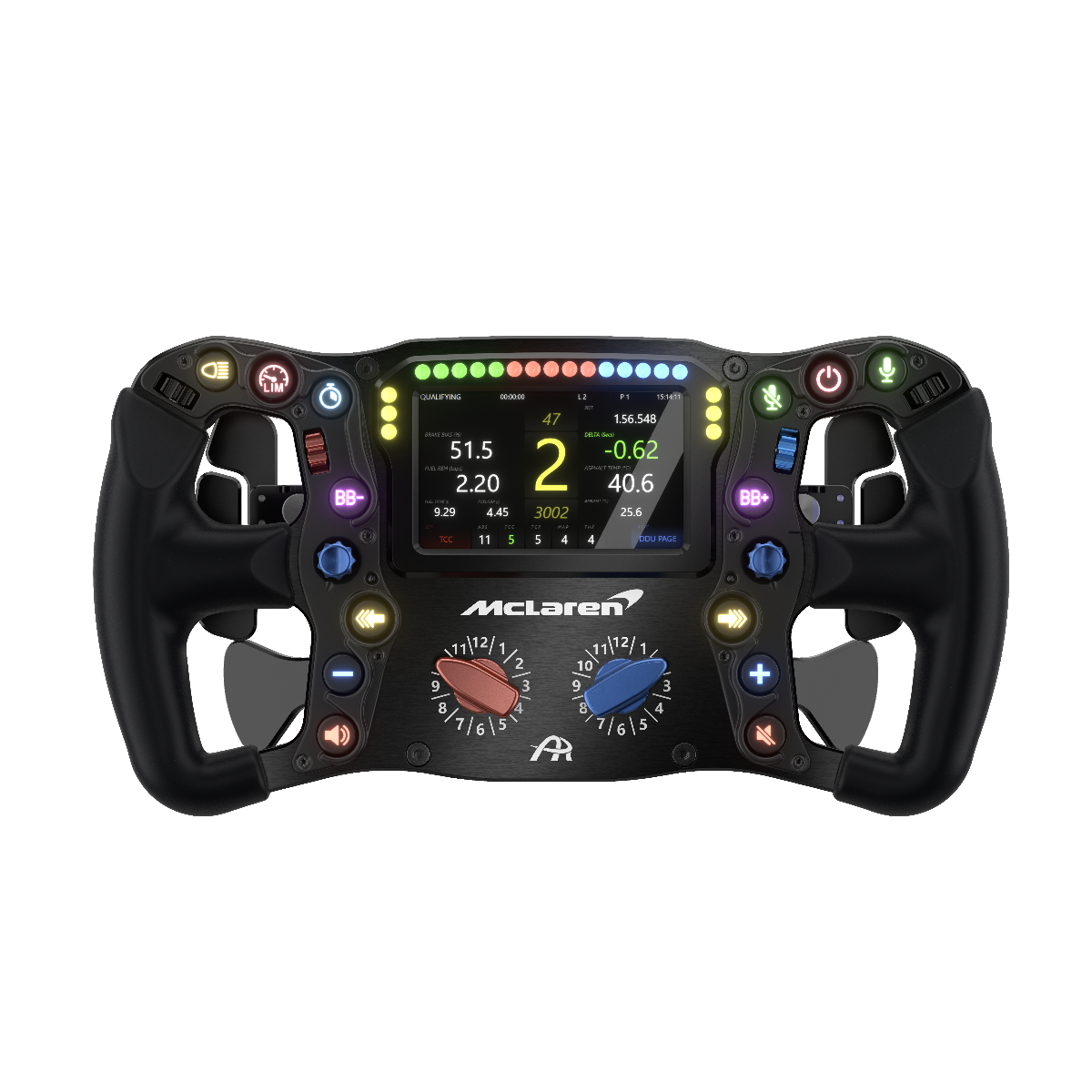

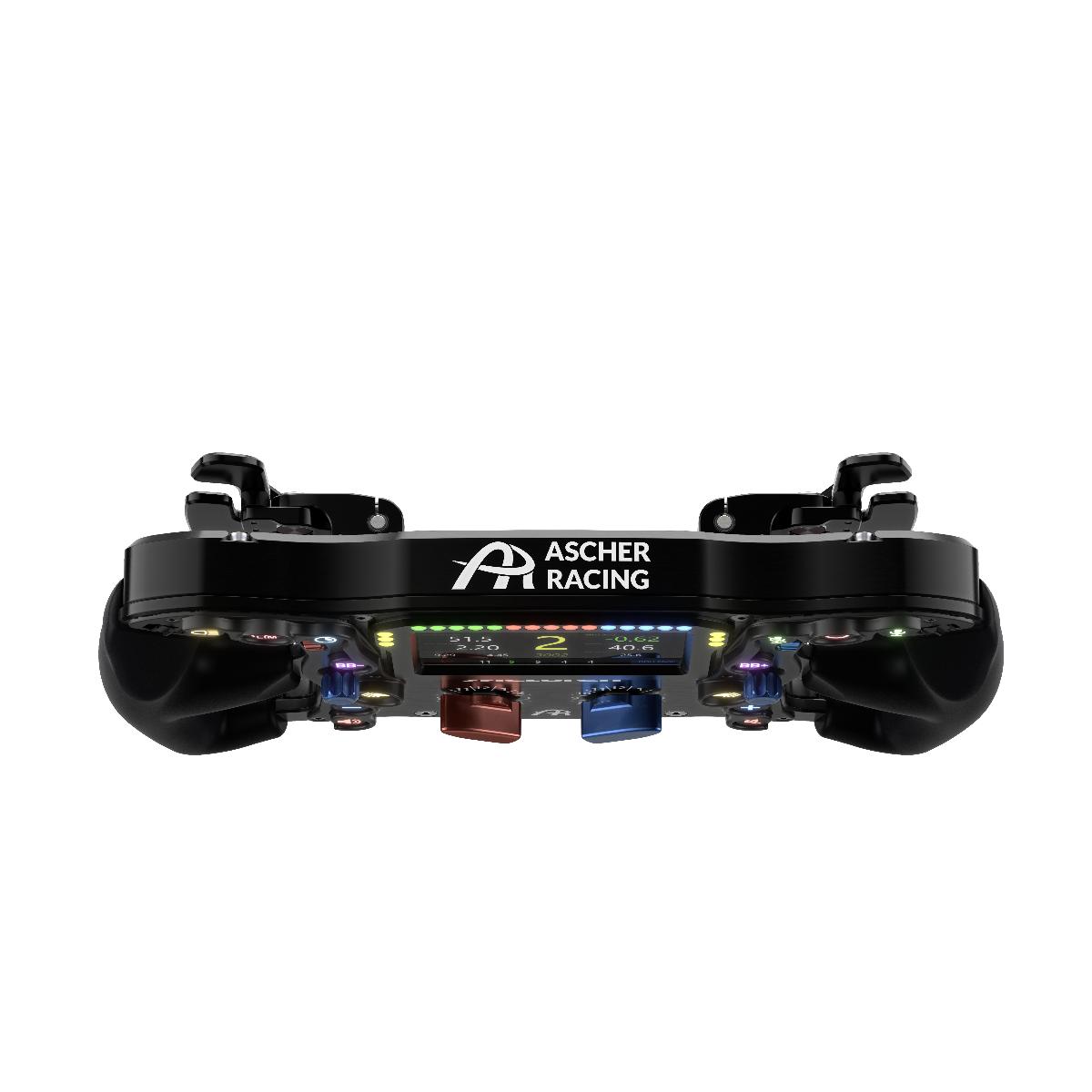

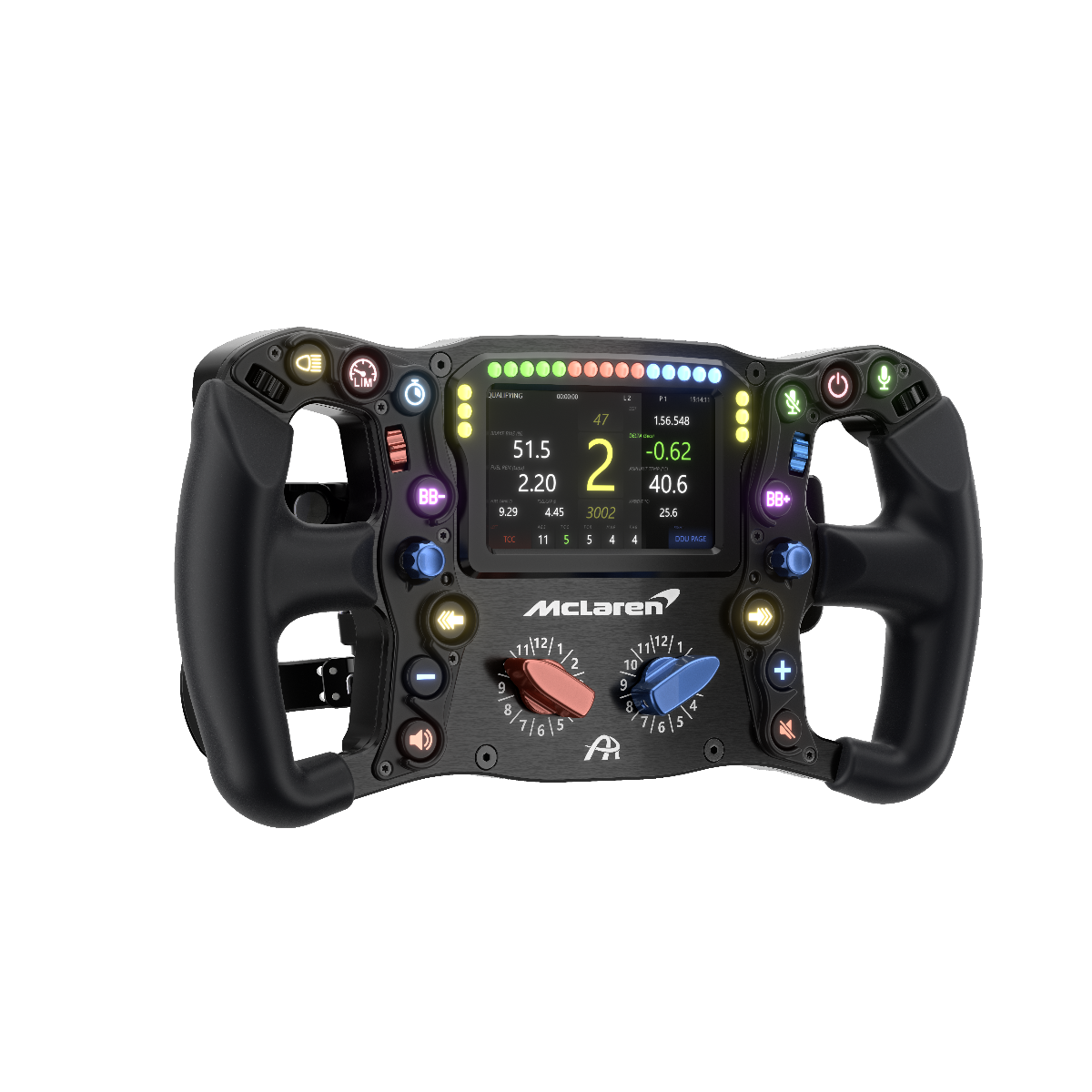

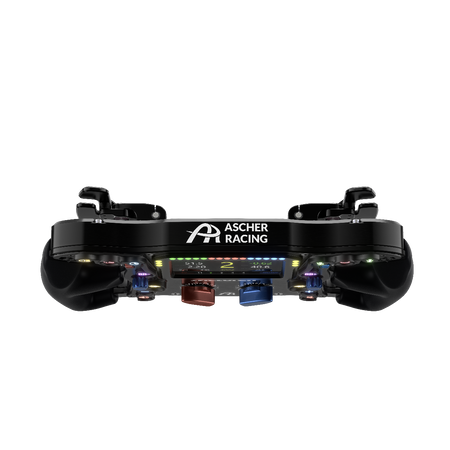

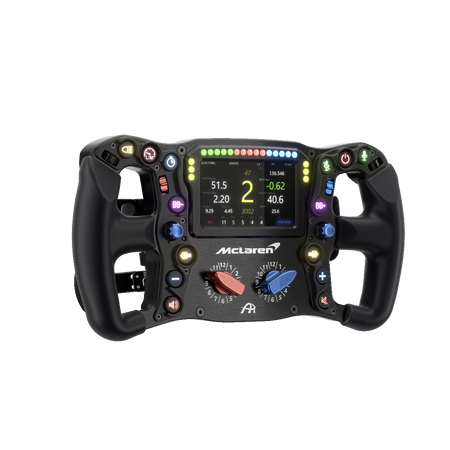

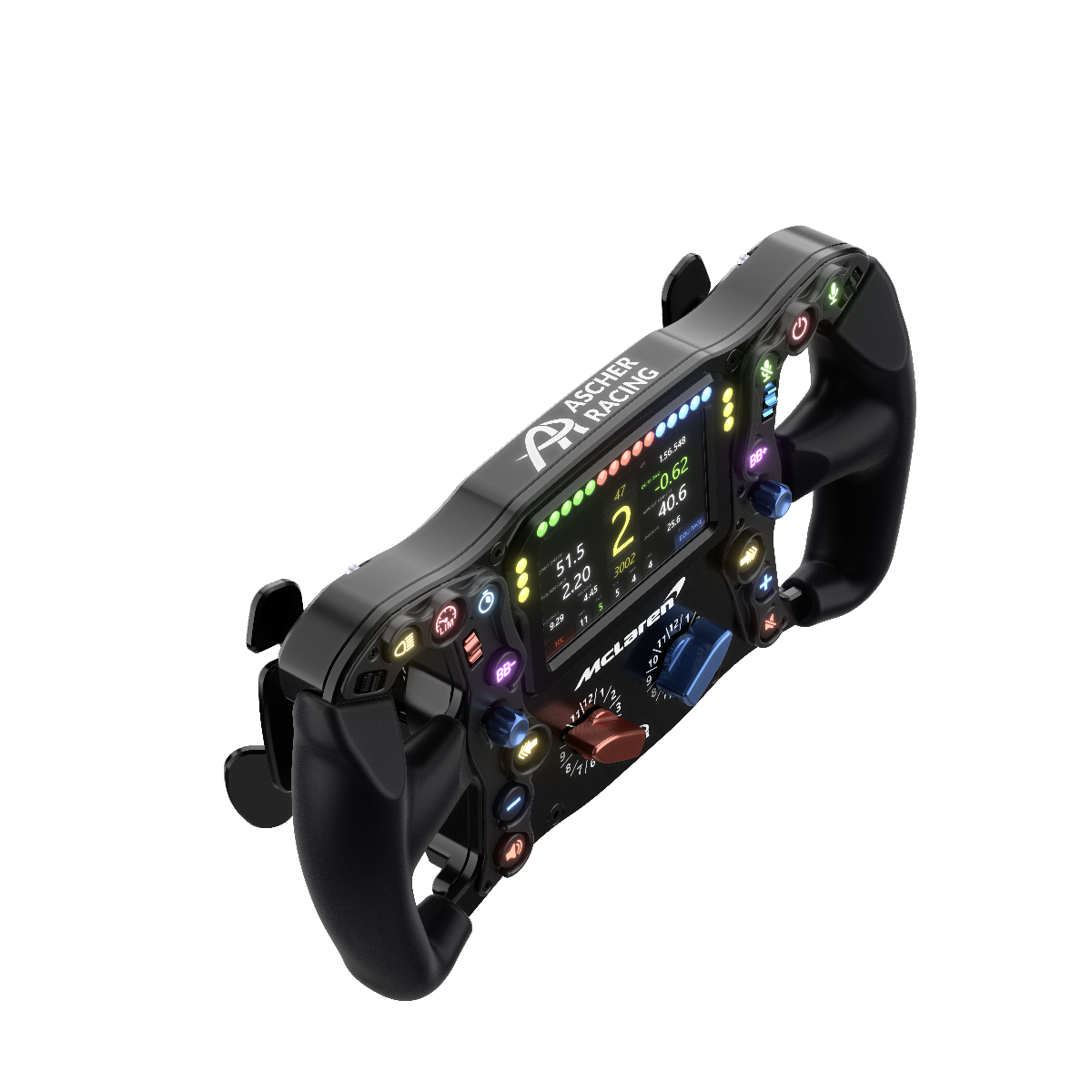

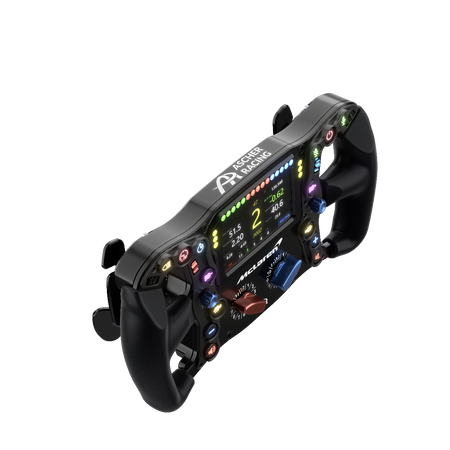

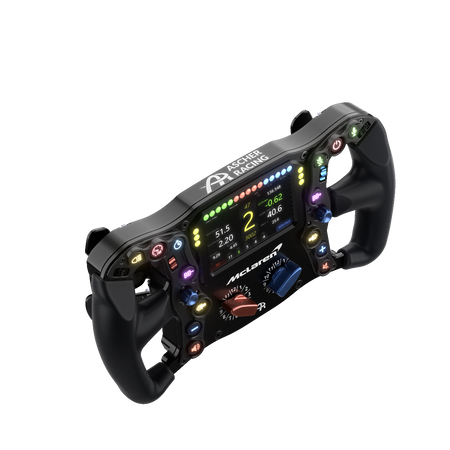

Ascher Racing McLaren Artura ULTIMATE

Ascher Racing McLaren Artura ULTIMATE

 Take your racing skills to a new level.

• Based on the official McLaren Artura GT4 wheel, uses identical components of real-racing steering wheel with Esports optimized functionality.
• Platform independent USB wheel.

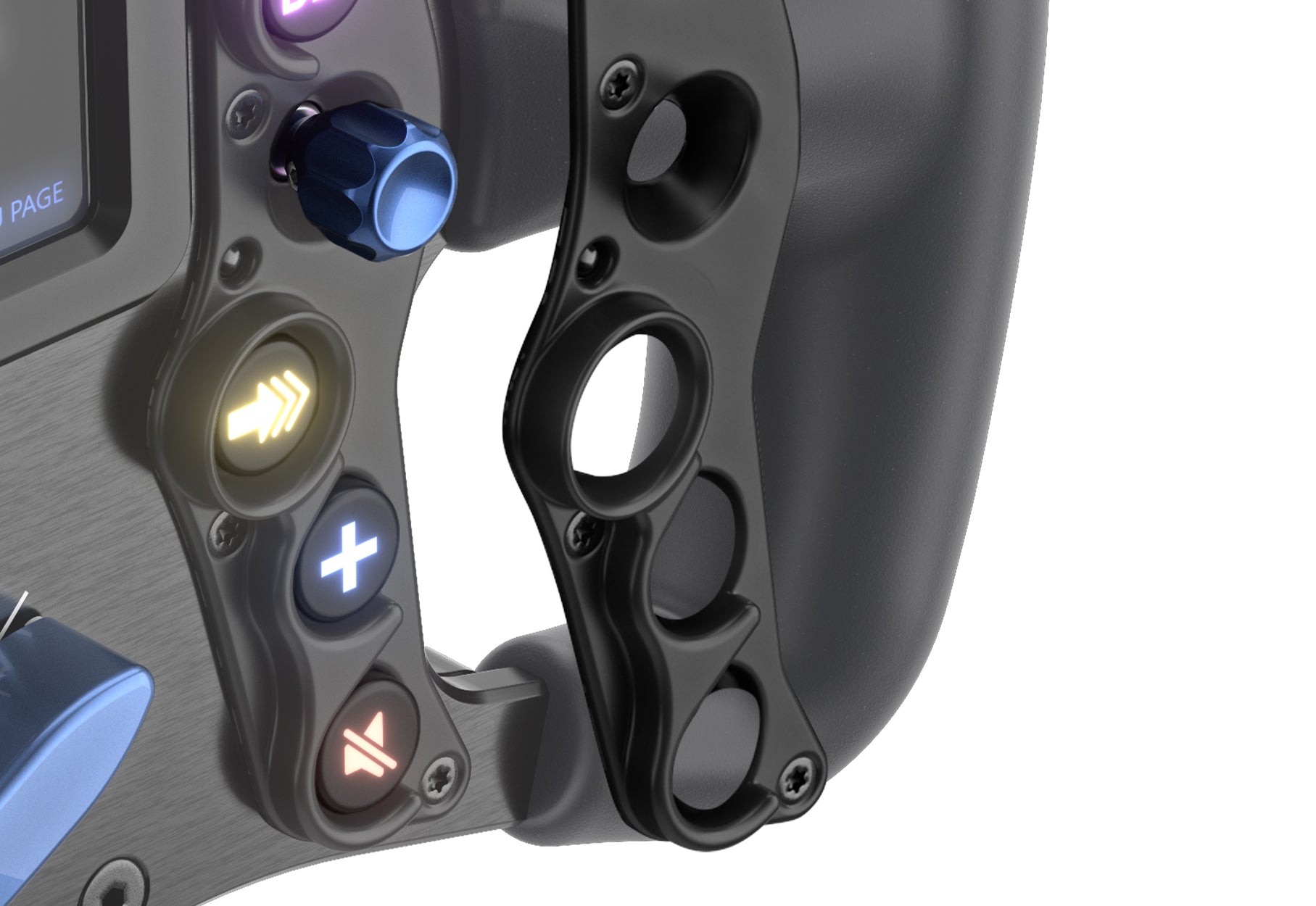

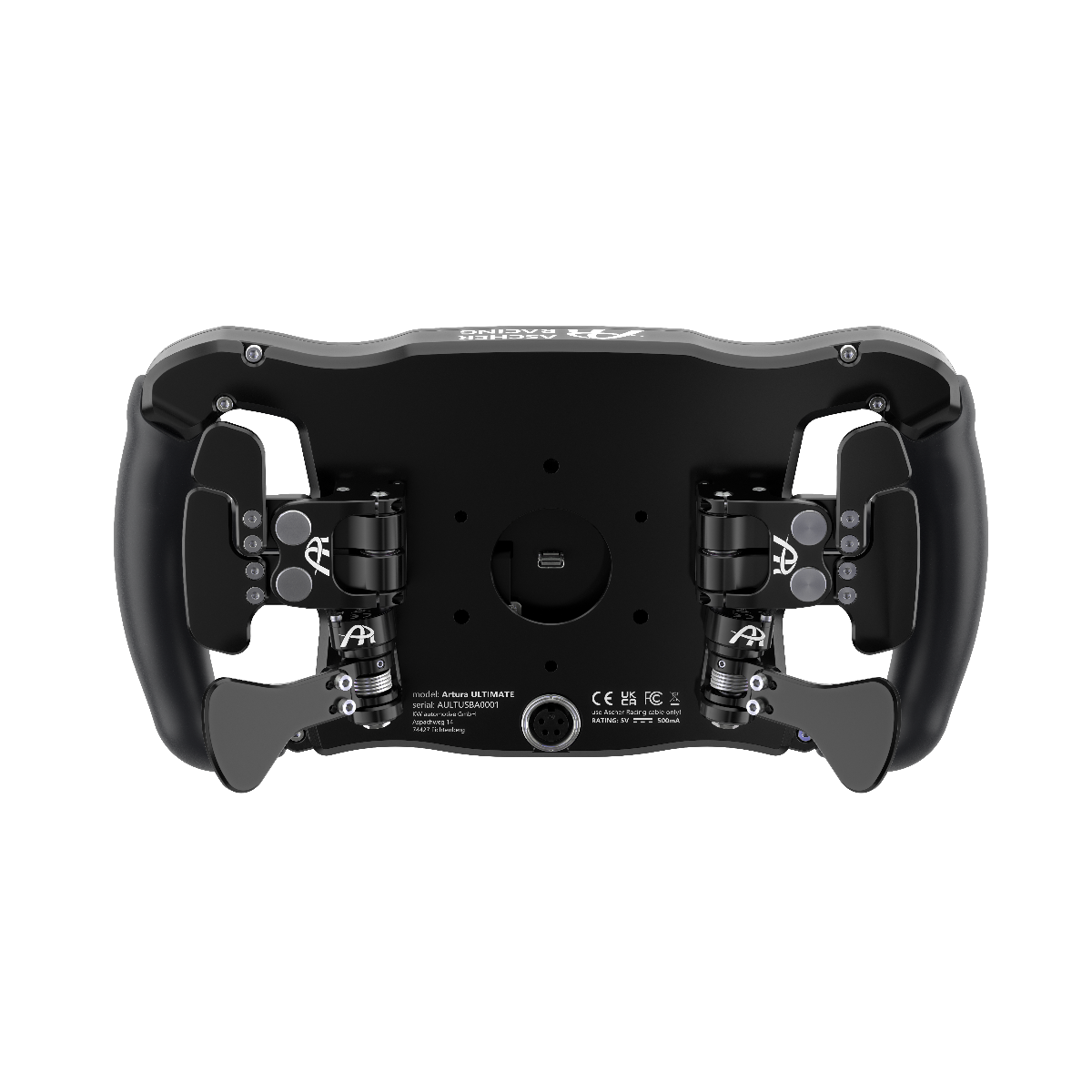

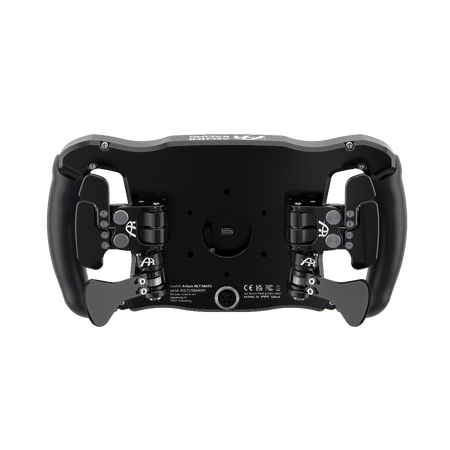

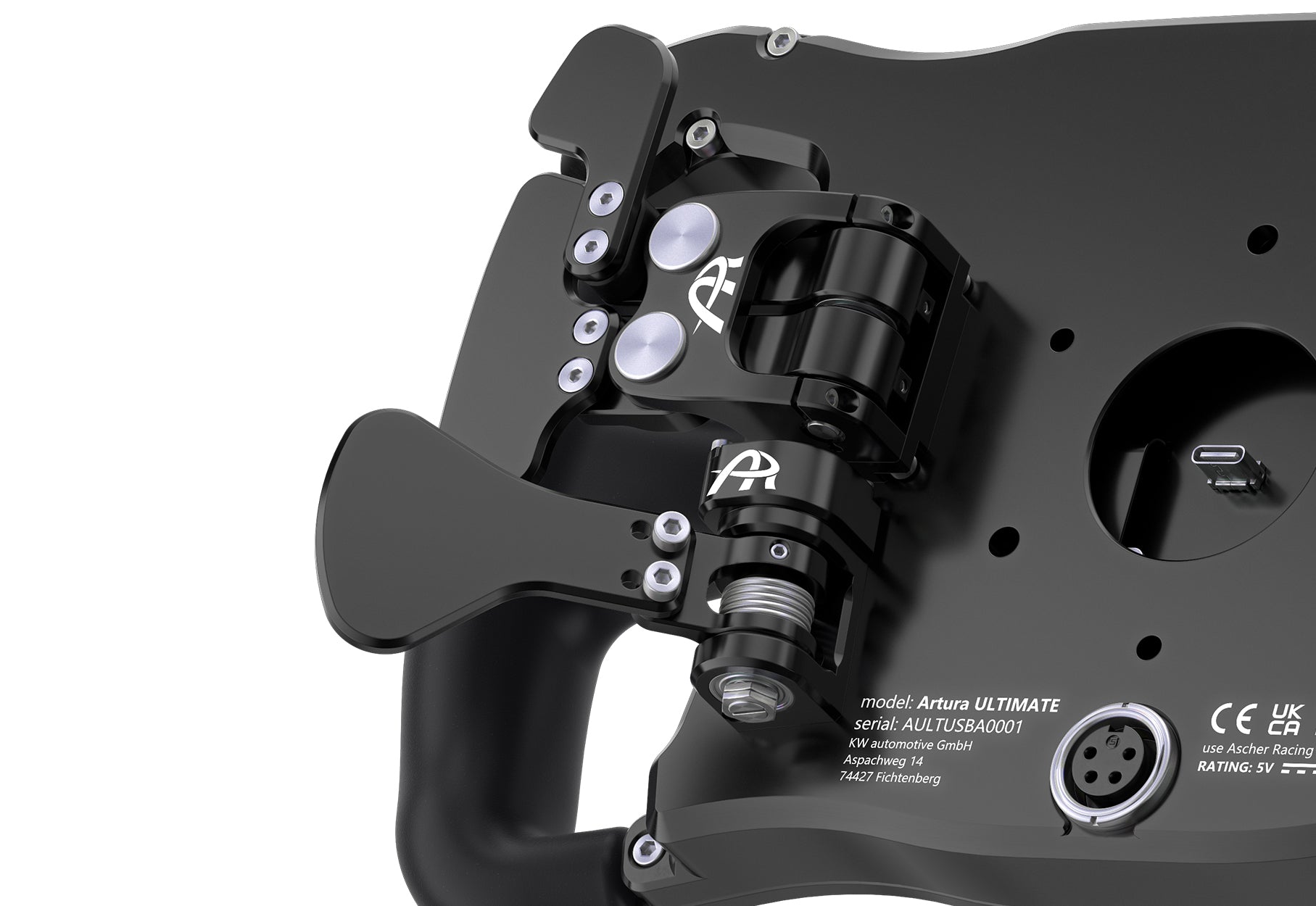

• Magnetic and silenced double paddle shifters and motorsport clutch paddles.
• Closed design with ergonomically improved rubber grips for maximum safety, stiffness, and grip.

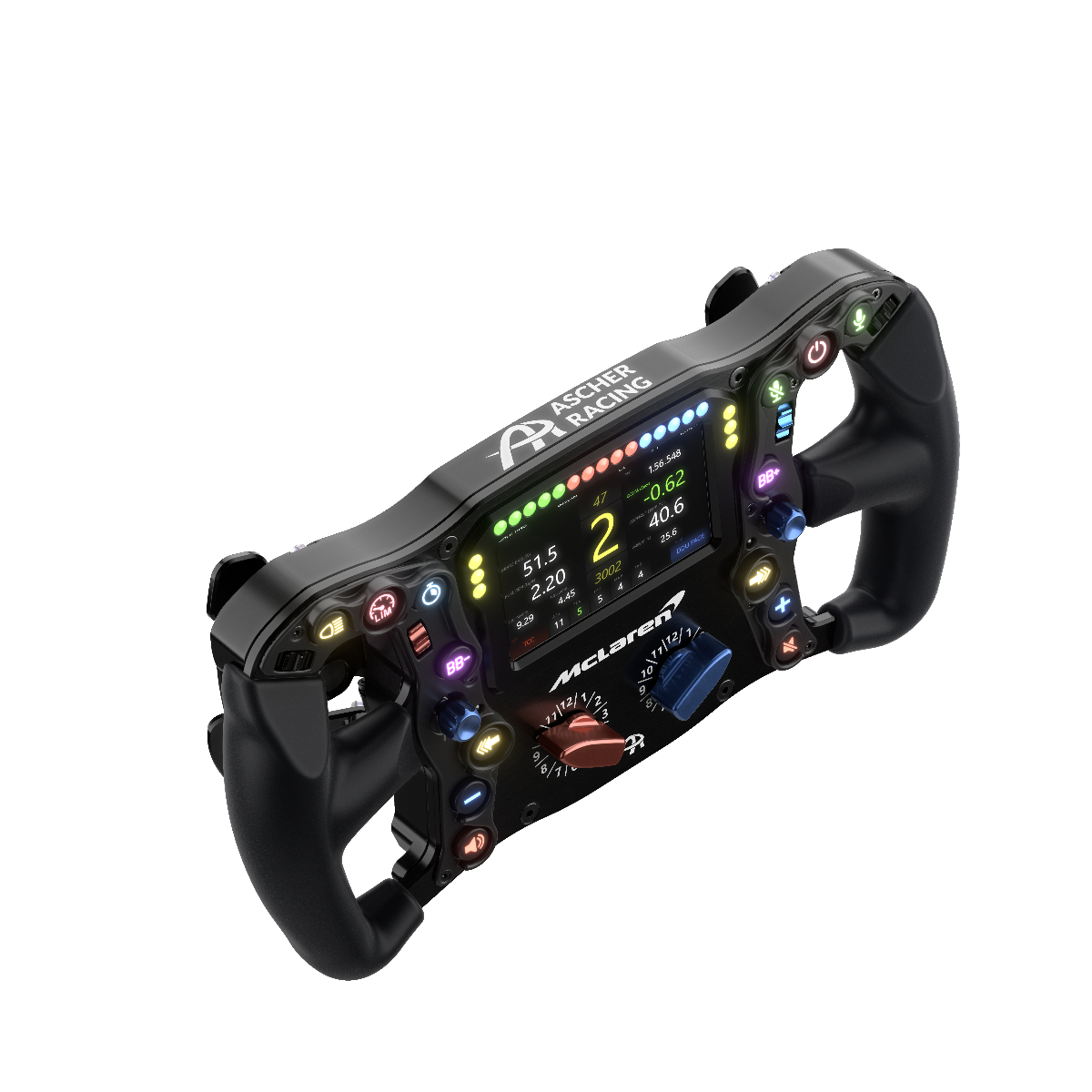

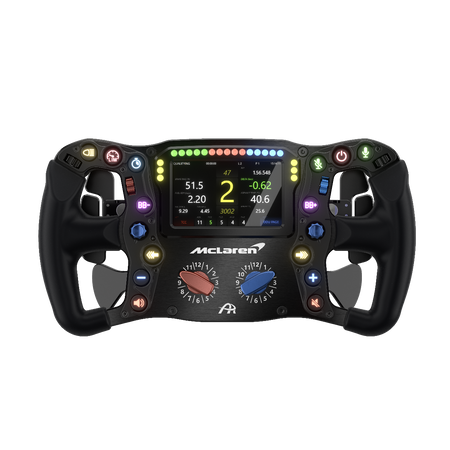

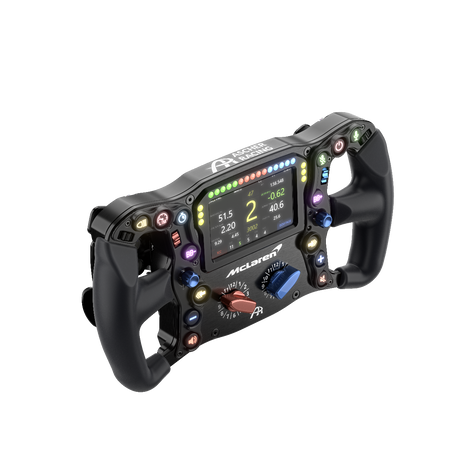

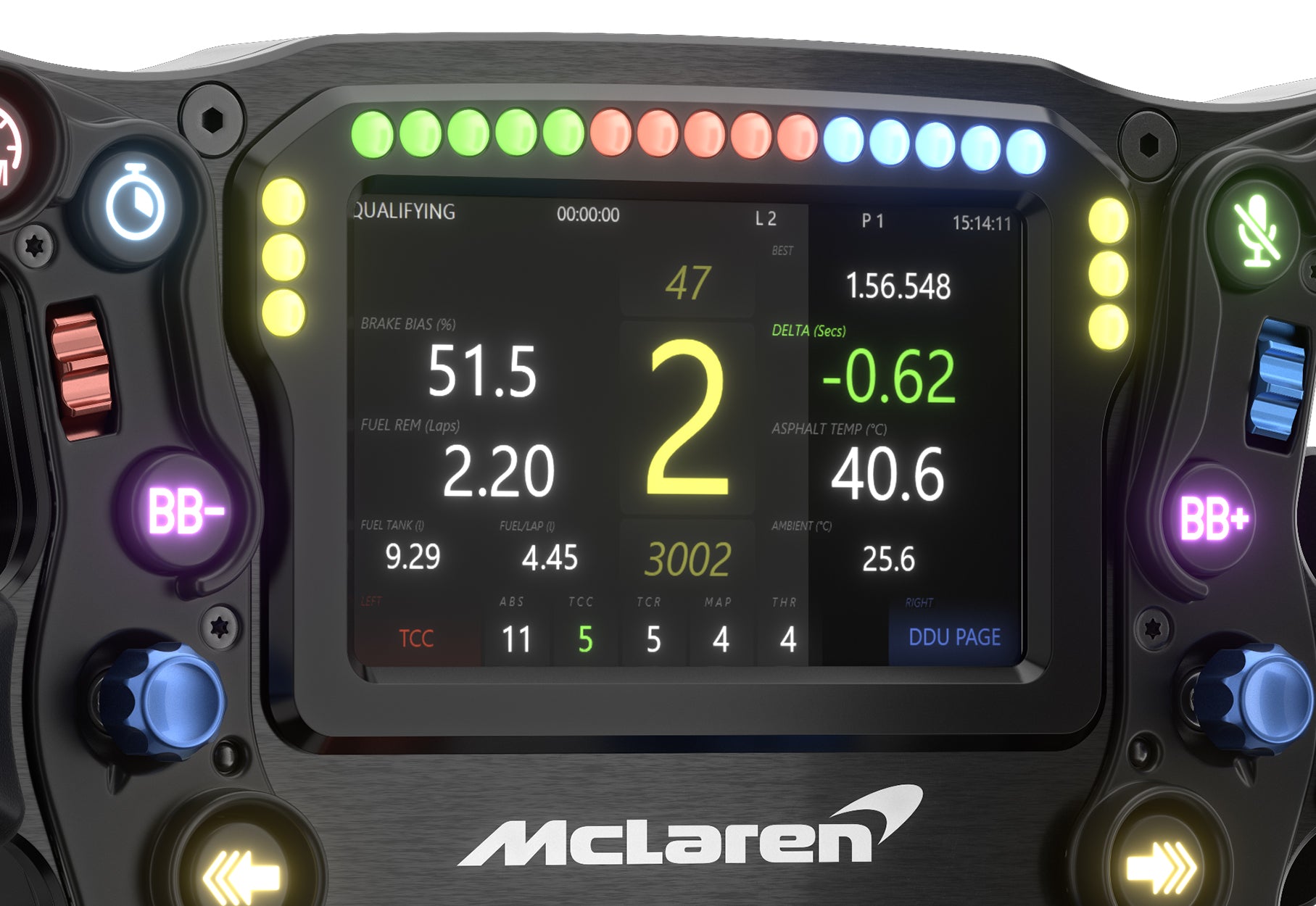

• Integrated 4” dashboard & 21 x RGB LEDs (shift lights).

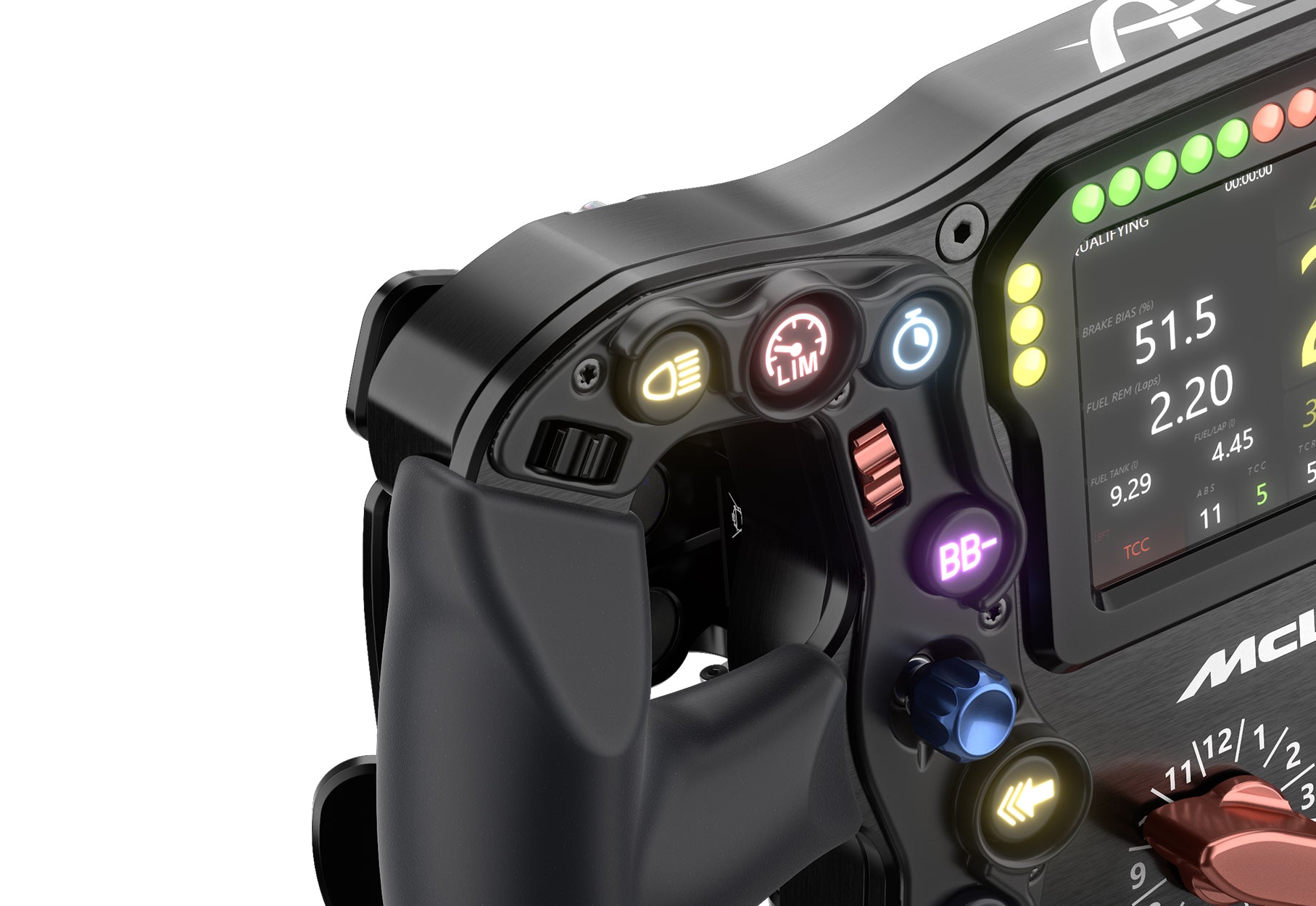

• 14 x RGB illuminated high-quality automotive push buttons with individually adjustable coloring (16 Mio. colors) and tactile feedback.
• 4x thumb encoder.
• 2 x multifunctional 7-way joysticks.
• 2 x 12-position rotary switches.
• Official SimHub integration.
• Animated and telemetry-supported lighting.
• Retrofittable single shifter.
• 300 mm wheel diameter.
• 6 x 70 mm hole pattern.

Specific features USB versions

RGB Backlighting

• Animated, telemetry-supported lighting can be set up.

Freely Configurable Button Mapping

• Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible.

Non-Linear Clutch Curves Adjustable

• Non-linear clutch curves adjustable: various predefined progressive/degressive/s curves selectable or individual definition possible.
• Separate setting of left and right clutch possible.

Encoder Pulse Width Adjustable

• Encoder pulse width adjustable (defines how long the button is triggered per click).

Settings That Can Be Made Directly On The Steering Wheel (Without Using Software)

• Bite point calibration in 0.1% & 1.0% steps.
• Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel.

Power Supply

• USB, no power injection necessary.

Power Consumption / Battery Life

• Low power consumption of only max. 500mA according to USB specification.

Compatibility

• Fanatec
• Asetek
• Simagic
• OSW
• Many others

Connection

• Cabled (USB)

General information

• 300mm diameter
• 6 x 70 mm bolt pattern

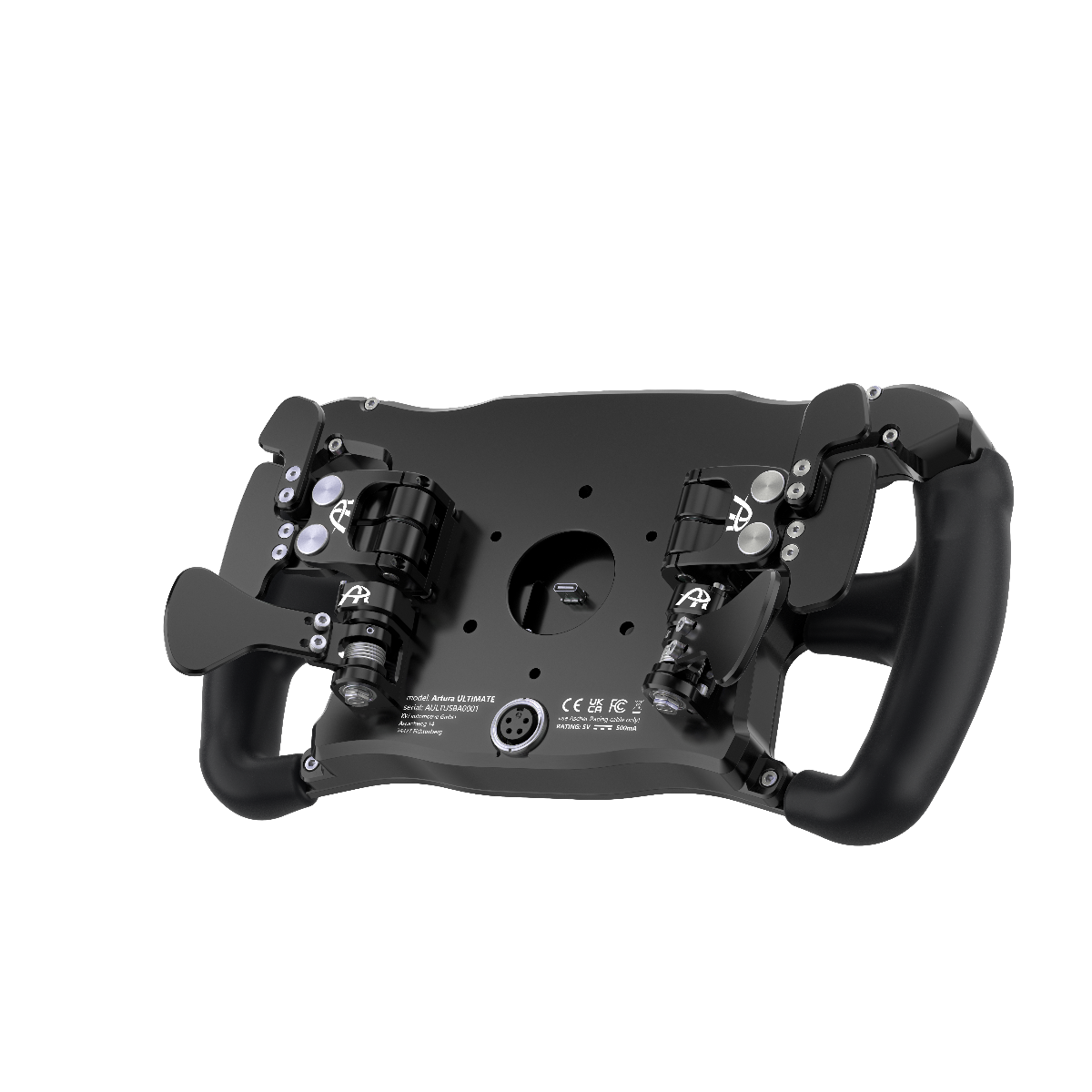

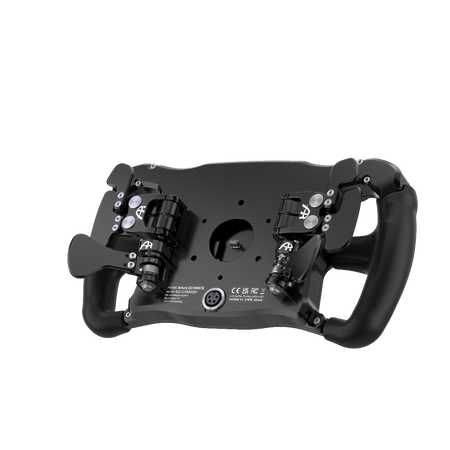

• Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
• QR spacer may be required to create sufficient clearance to the wheelbase (connector length approx. 64mm)
• Quick release not included except chosen at check-out
• Mass: 1520g

Scope of delivery:

• Ascher Racing McLaren Artura Ultimate sim racing steering wheel
• Ascher Racing McLaren sticker set
• M5 x 12 mm stainless screws to mount QR
