Ascher-Racing 8" Dashboard

Ascher-Racing 8" Dashboard

• 8“ Dashboard
• 7.85" high-resolution display
• 26x RGB LEDs (16 million colors)
• Official SimHub integration
• 16-bit colors, 350 lm brightness
• Touch operation possible
• Smallest possible dimensions (<18mm wide)
• Mounting via carbon bracket or ¼" thread possible

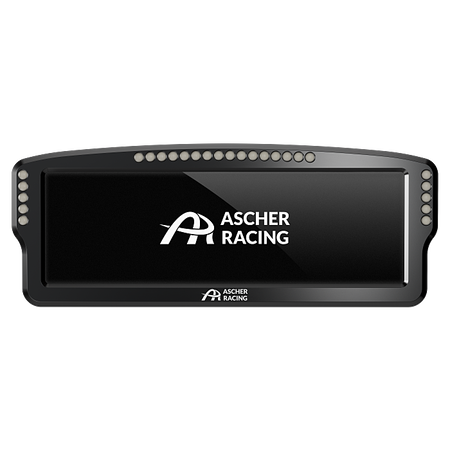

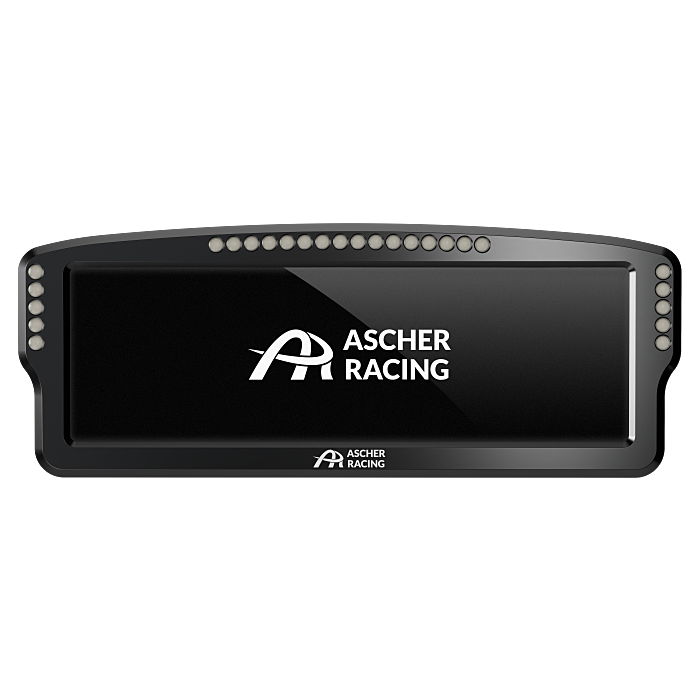

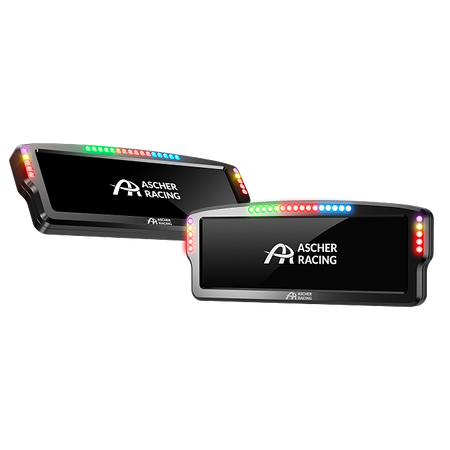

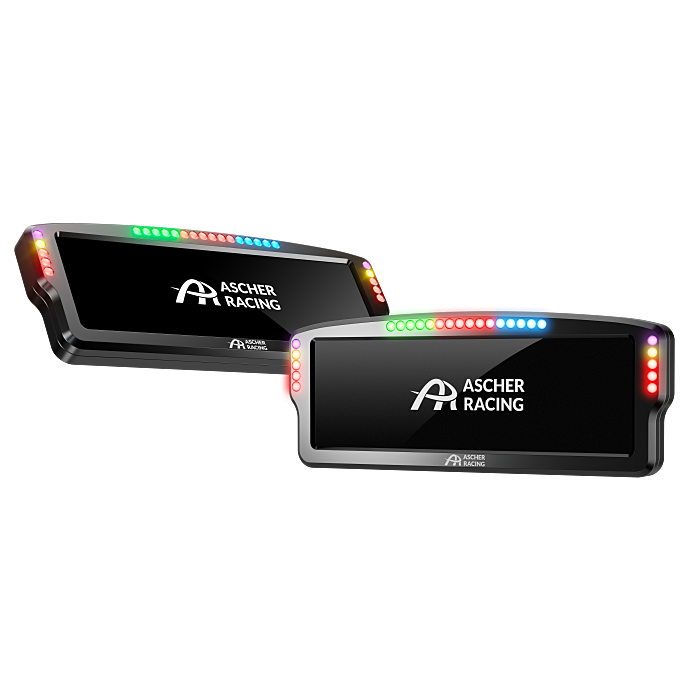

The Ascher Racing 8" Dashboard is a premium high-performance display designed to give sim racers a bigger and clearer view of essential racing data.

Featuring a 7.85" high-resolution touchscreen with real-time telemetry and 26 customizable RGB LEDs, it delivers outstanding visibility and instant visual feedback. The ultra-slim CNC-machined aluminum housing ensures maximum durability while maintaining a compact motorsport-inspired design. With official SimHub integration, both dashboard layouts and LED behavior can be fully customized for each race and simulation.

Specifications:

Housing

• Material: CNC-milled aluminum
• Dimensions (W x H x D): 225.25 x 86.55 x 17.93 mm
• Connection: USB-C
• Power: 5V / 3A
• Weight: Slim design, only 18 mm thick

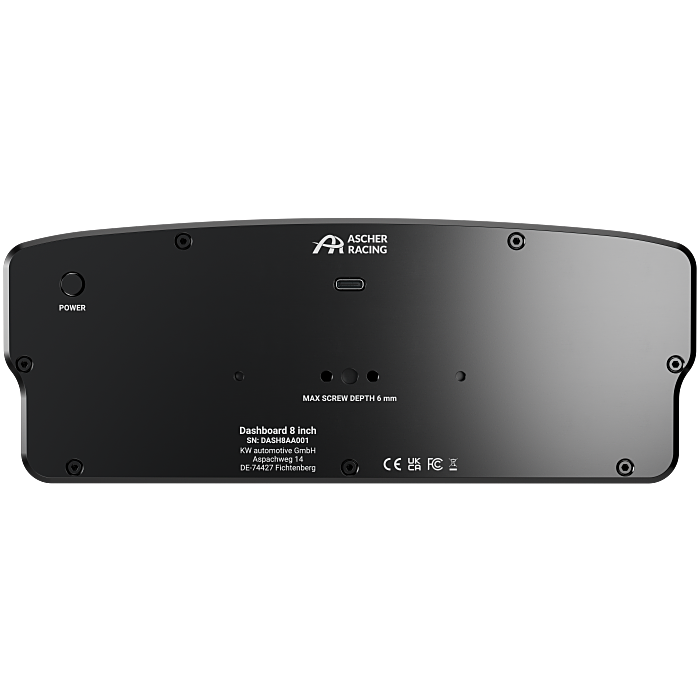

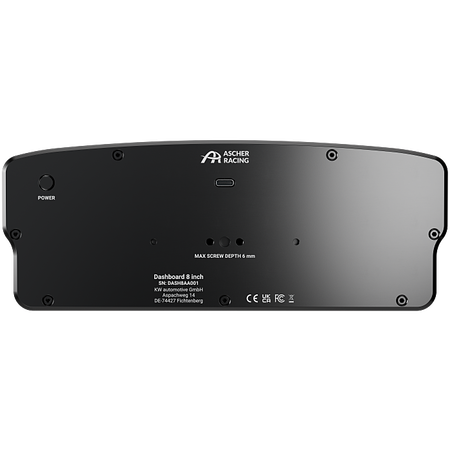

• Power switch on the back

Display

• Size: 7.85" high-resolution screen
• Resolution: 1280 × 400 px
• Color depth: 24-bit / 16-bit
• Refresh rate: up to 60 Hz
• Capacitive multi-touch (2-point)

LEDs

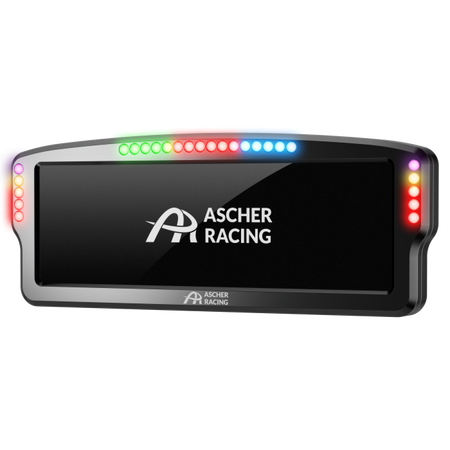

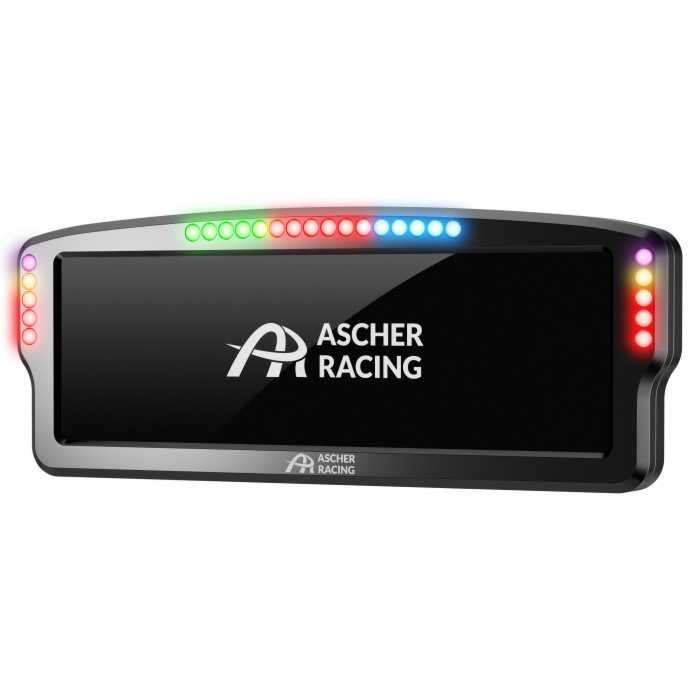

• 26 RGB LEDs total (16 RPM + 10 Flag LEDs)
• 16.7 million colors (24-bit)
• Extremely bright, ideal for shift light and flag signals
• Horizontal + vertical layout for maximum visibility
• No light bleed between LEDs

Software-Integration

• Official SimHub integration
• Compatible with all major racing simulations

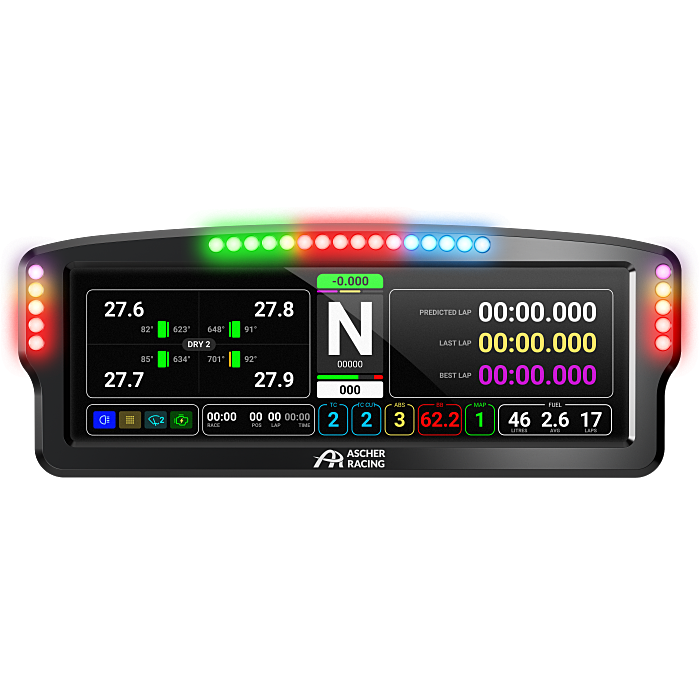

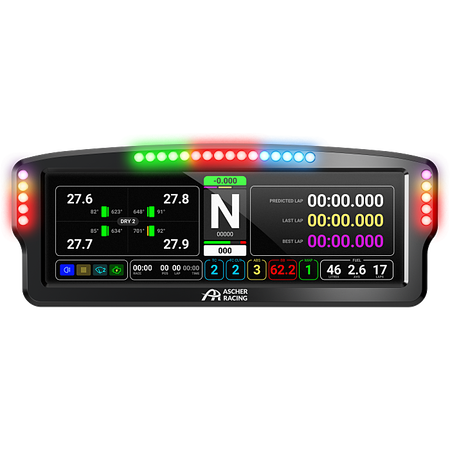

• Preconfigured Ascher Racing dash layouts & LED profiles
• Examples:
  • iRacing: vehicle-specific LED profiles with telemetry-optimized, gear-dependent shift points
  • Clutch pop-ups for Ascher Racing F64 USB / SC wheels
• Unlimited customization (telemetry values, formulas, etc.)
• User-friendly dashboard editor

Compatibility:

• Carbon hardware mounts included for:
  • Simucube 1 / 2 / 3
  • Fanatec Wheelbases
  • VRS DirectForce Pro
  • Asetek Wheelbases
  • Simagic
  • MiGE & Lenze Motoren
• ¼" thread on the back for custom mounting solutions / universal use

What's included?

• Carbon mounting bracket
• Required screws
• Aluminum spacers for adjustable distance
• Dashboard (8")
• Pre-installed Ascher Racing dash design & LED profile
